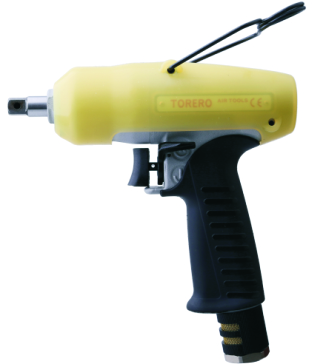

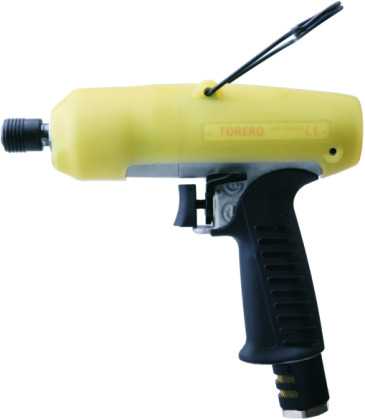

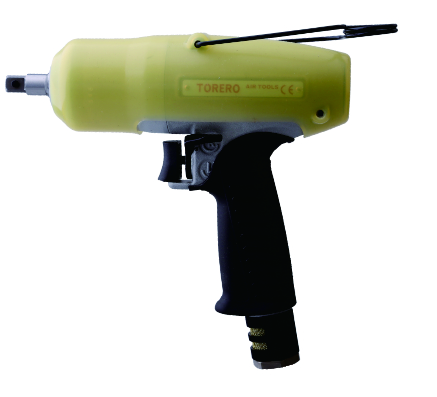

OBT series pistol type shut-off air oil-pulse wrench/screwdriver (High pressure tool)

Picture Model No.Bolt size Torque Range（Nm） Square drive Free Speed（rpm） Length Weight Air inlet Rec. hose size Air consumption Noise level
mm 0.5-0.6MPa in 0.4MPa 0.5MPa 0.6MPa mm kg in mm m3/min dB
OBT-40PD OBT-40PD 5 4-12 3/8 - 3700 4000 160.5 0.92 PT 1/4 6.5 0.2 75
OBT-50PD OBT-50PD 5-6 7-16 3/8 - 4200 4500 160.5 0.92 PT 1/4 6.5 0.25 78
OBT-60PD OBT-60PD 8 16-32 3/8 - 5700 6000 170 0.95 PT 1/4 6.5 0.35 80
OBT-70PD OBT-70PD 8-10 30-50 3/8 - 5700 6000 183 1.05 PT 1/4 8.0 0.4 80
OBT-80PD OBT-80PD 8-10 40-65 3/8 - 5500 5800 187 1.25 PT 1/4 8.0 0.48 80
OBT-81PD OBT-81PD 10 40-65 1/2 - 5500 5800 192 1.25 PT 1/4 8.0 0.48 80
OBT-90PD OBT-90PD 10-12 42-85 1/2 - 4700 5000 192 1.45 PT 1/4 8.0 0.53 82
OBT-100PD OBT-100PD 12 75-130 1/2 - 4200 4500 198 1.7 PT 1/4 8.0 0.55 82
OBT-130PD OBT-130PD 12-14 110-150 1/2 - 4200 4500 215 2.3 PT 1/4 12.7 0.7 82
OBT-150PD OBT-150PD 14-16 130-210 3/4 - 3600 3900 243.5 2.9 PT 1/4 12.7 0.7 82
OBT-180PD OBT-180PD 16-18 165-260 3/4 - 2800 3000 262 3.7 PT 3/8 12.7 0.7 82
OBT-40PH OBT-40PH 5 4-12 1/4 - 3700 4000 161 0.92 PT 1/4 6.5 0.2 75
OBT-50PH OBT-50PH 5-6 7-16 1/4 - 4200 4500 161 0.92 PT 1/4 6.5 0.25 78
OBT-60PH OBT-60PH 6-8 14-30 1/4 - 5700 6000 171 0.95 PT 1/4 6.5 0.35 80
OBT-70PH OBT-70PH 8 22-35 1/4 - 5700 6000 183 1.05 PT 1/4 8.0 0.4 80

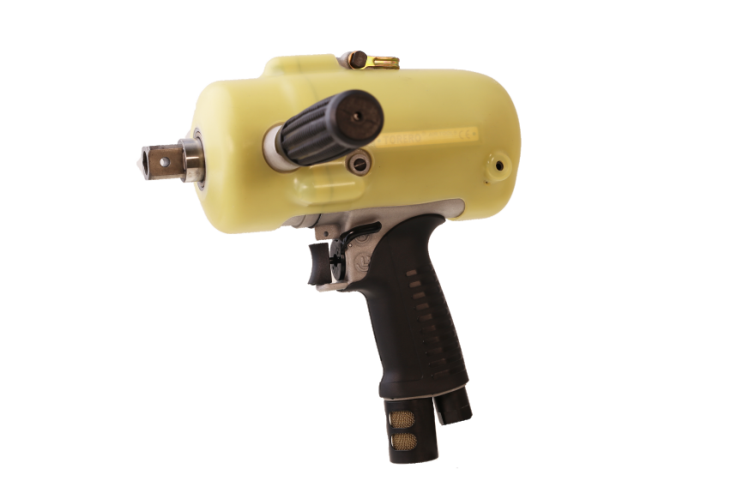

OBT-250PD OBT-250PD 16-20 250-450 3/4 - - 3600 221 4.2 PT 3/8 13 1.4 85
OBT-80PH OBT-80PH 8-10 30-42 1/4 6500 6800 191 1.26 PT 1/4 8.0 0.48 80
