OBN series straight type non shut-off geared oil-pulse wrench(Open-end)

Picture Model No.Opposing edge size of socket gear Torque Range（Nm） Free Speed（rpm） Length Weight Air inlet Rec. hose size Air consumption Noise level
mm in 0.5-0.6MPa 0.5-0.6MPa mm kg in mm m3/min dB

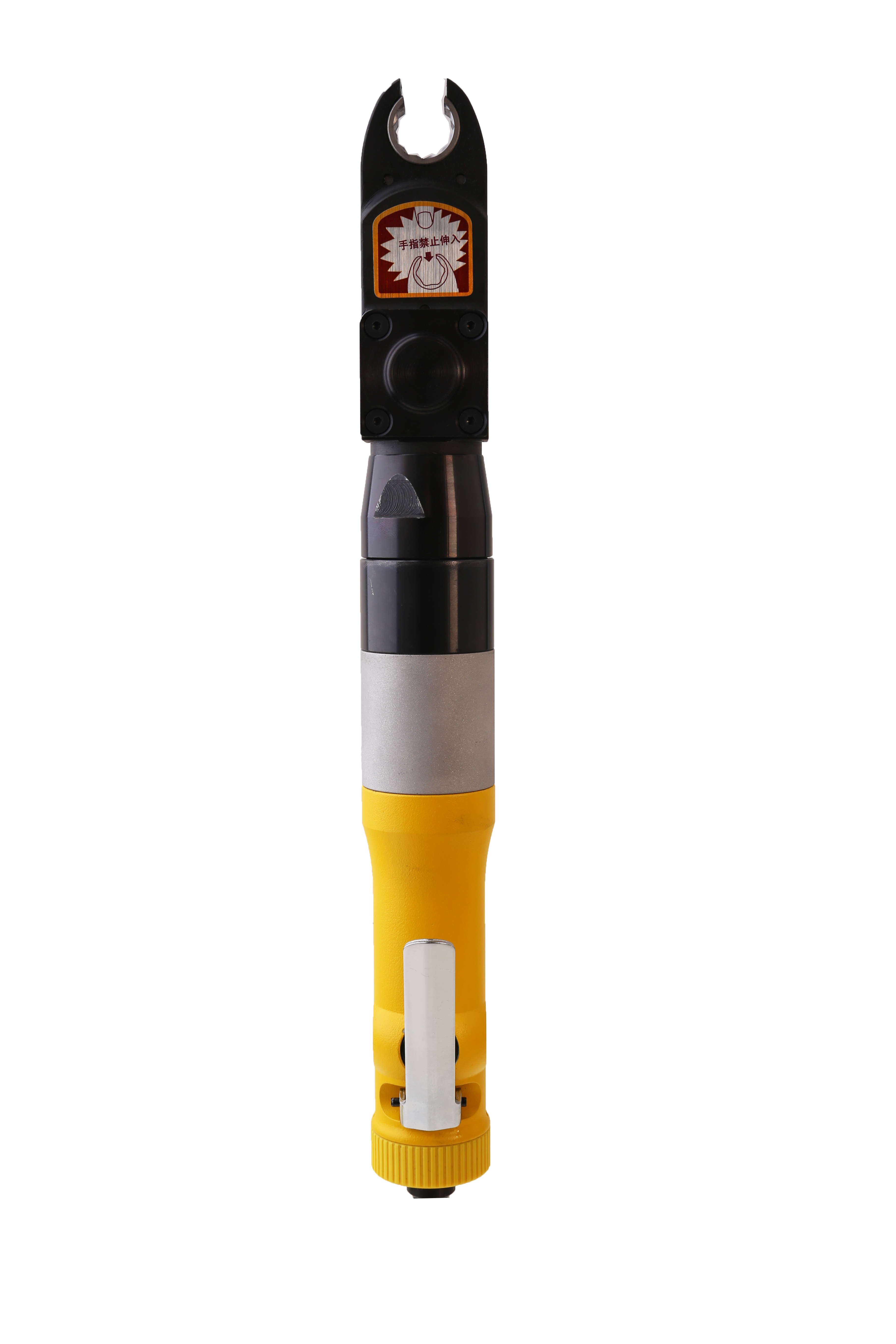

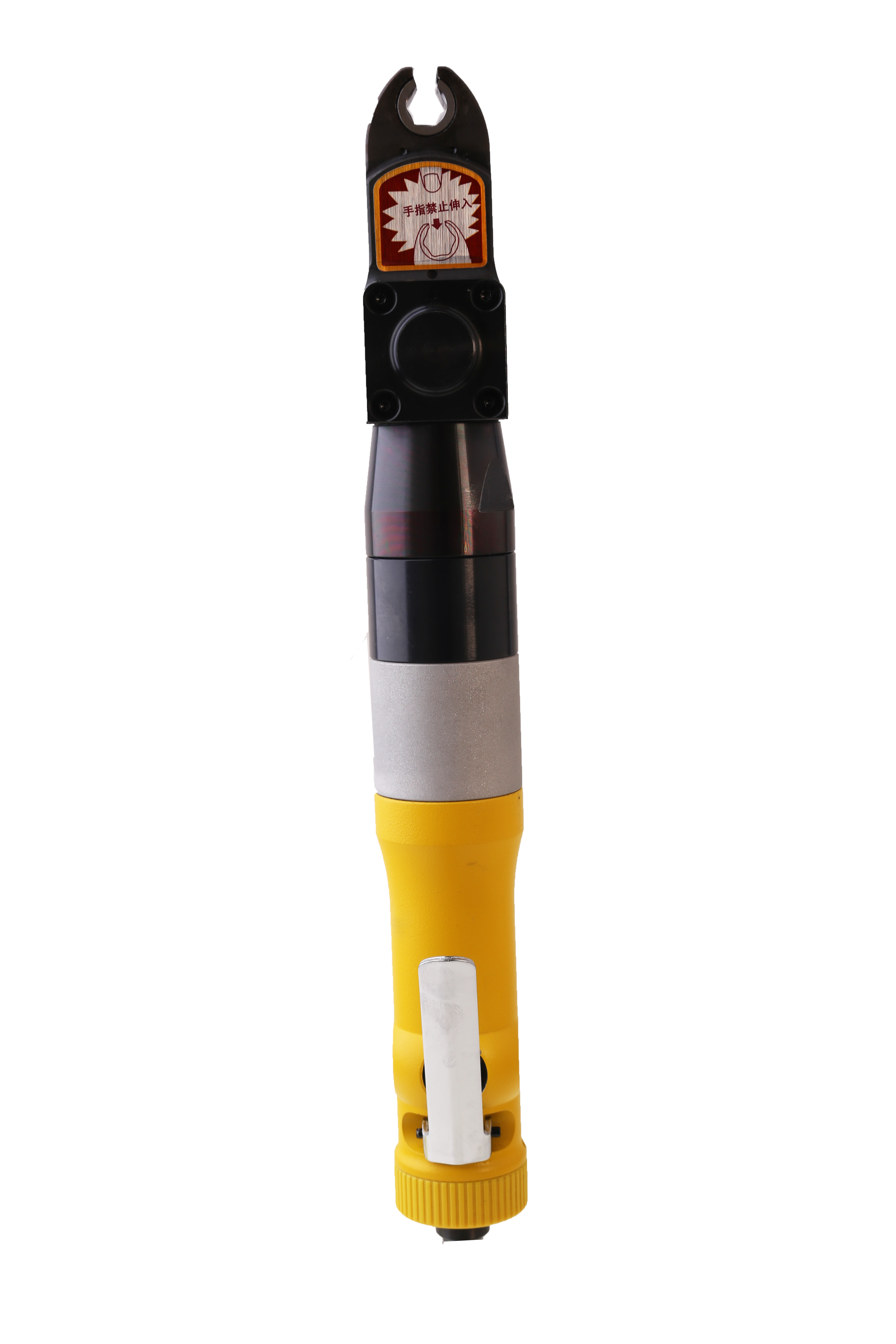

OBN-50SW-1 OBN-50SW-1 8.9.10 3/8.7/16 12-18 400-430 350 1.9 PT 1/4 6.5 0.4 75

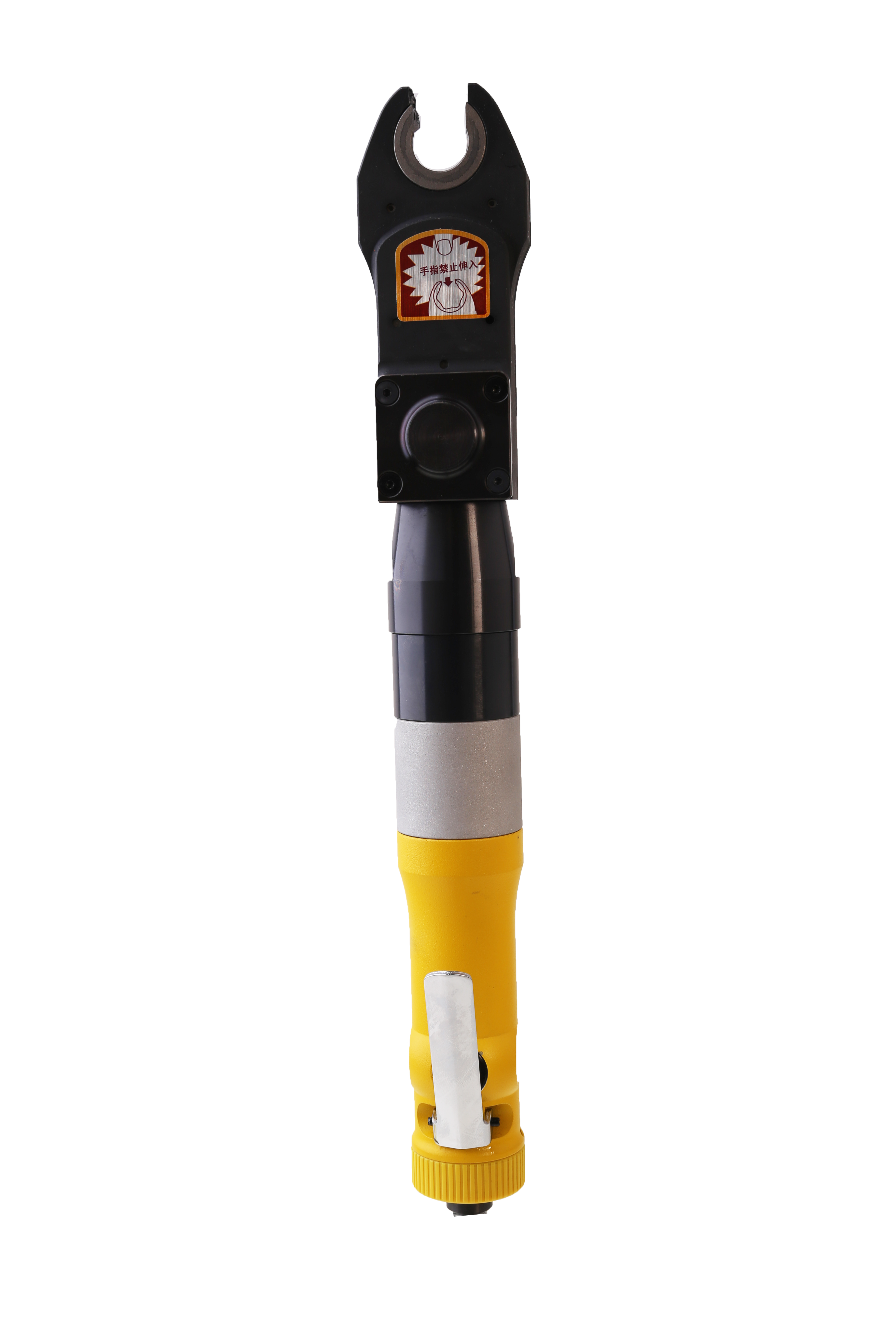

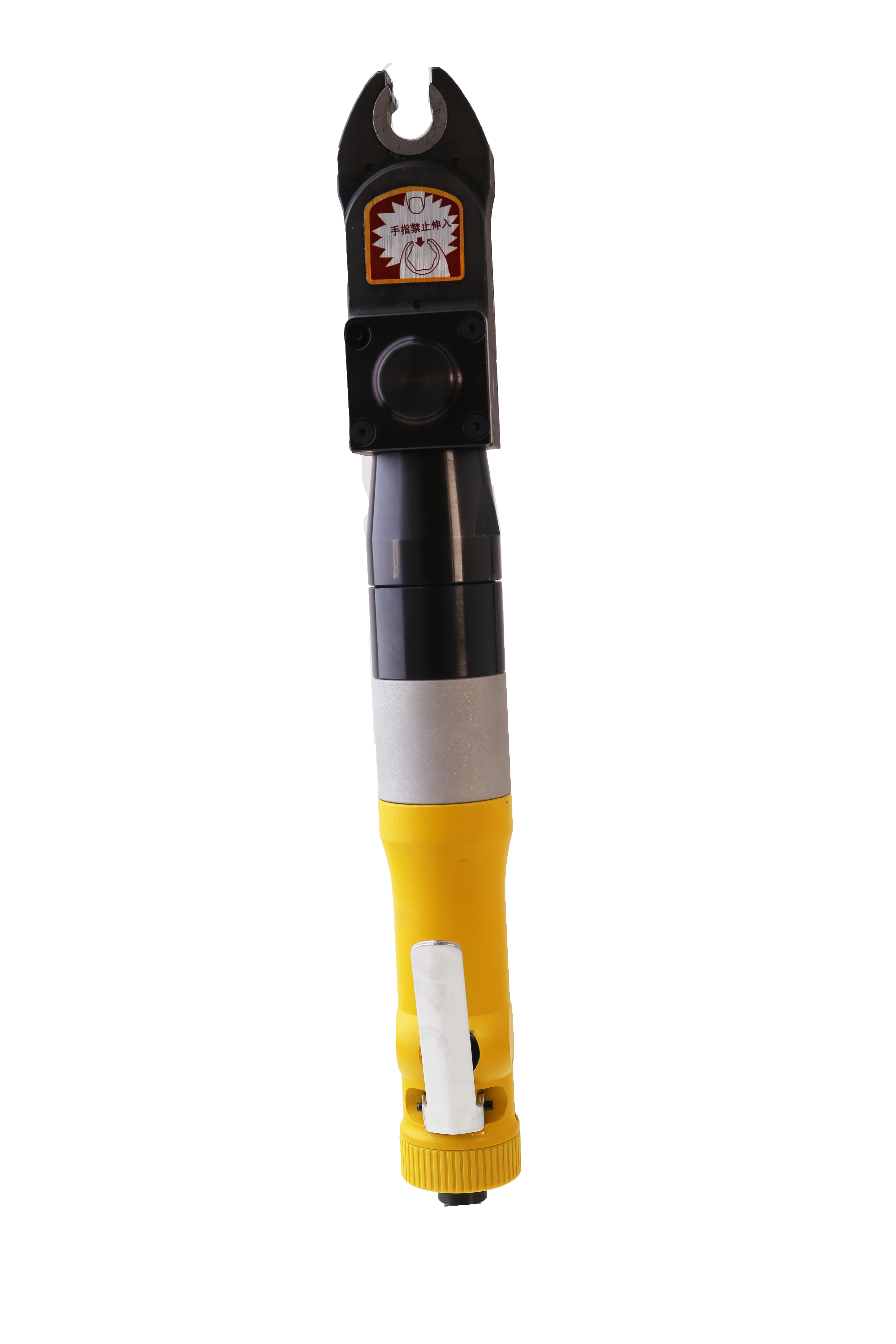

OBN-50SW-2 OBN-50SW-2 12.13.14.15.16.17 9/16 12-18 300-350 364 1.98 PT 1/4 6.5 0.4 75

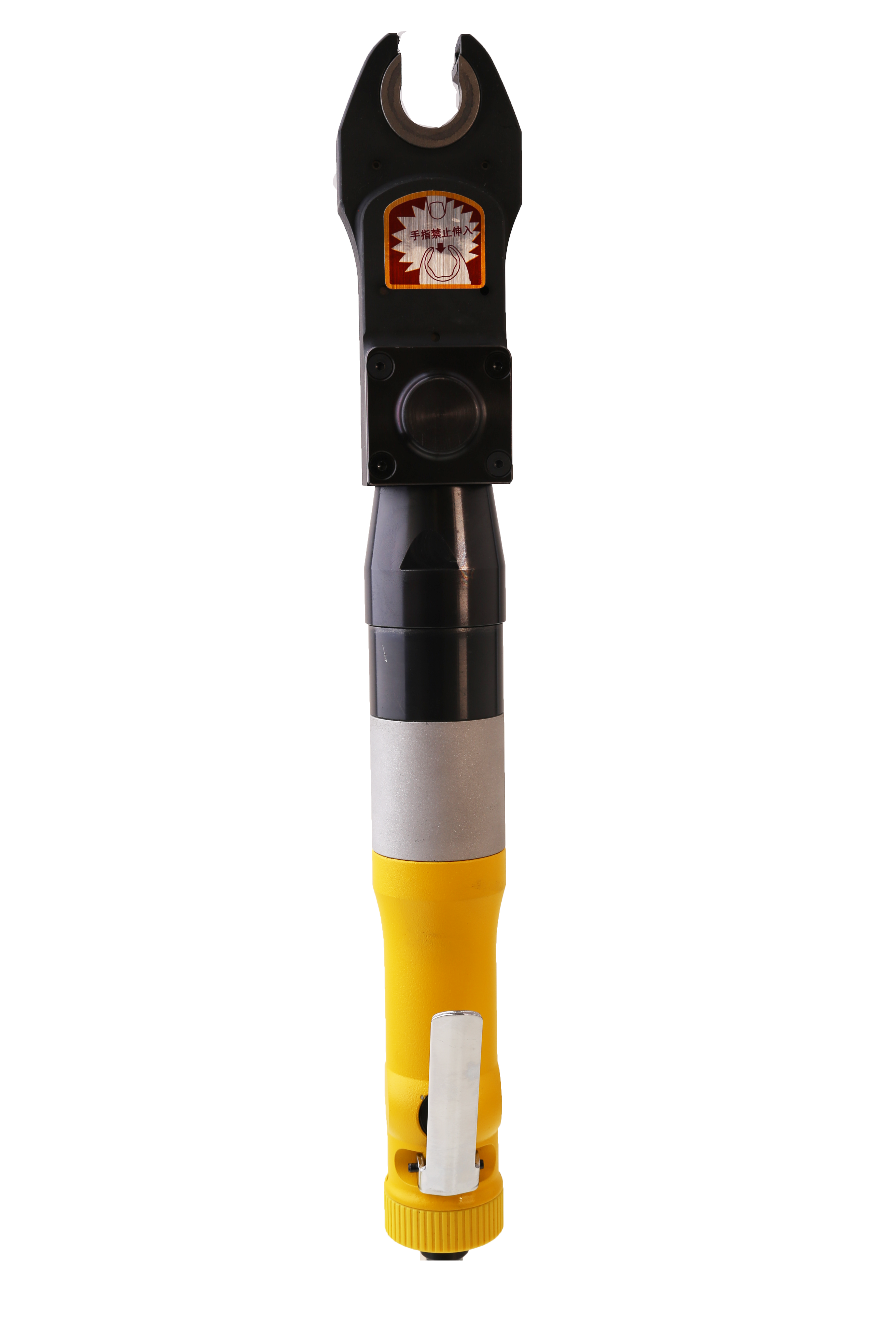

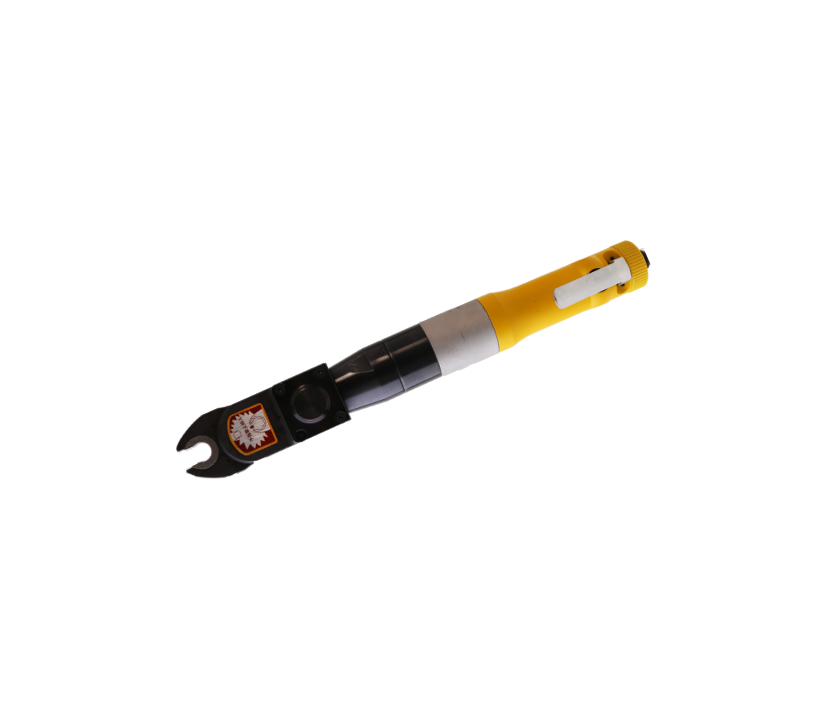

OBN-50SW-60-1 OBN-50SW-60-1 16.17.18 9/16 16-24 350-400 376 2.36 PT 1/4 6.5 0.4 75

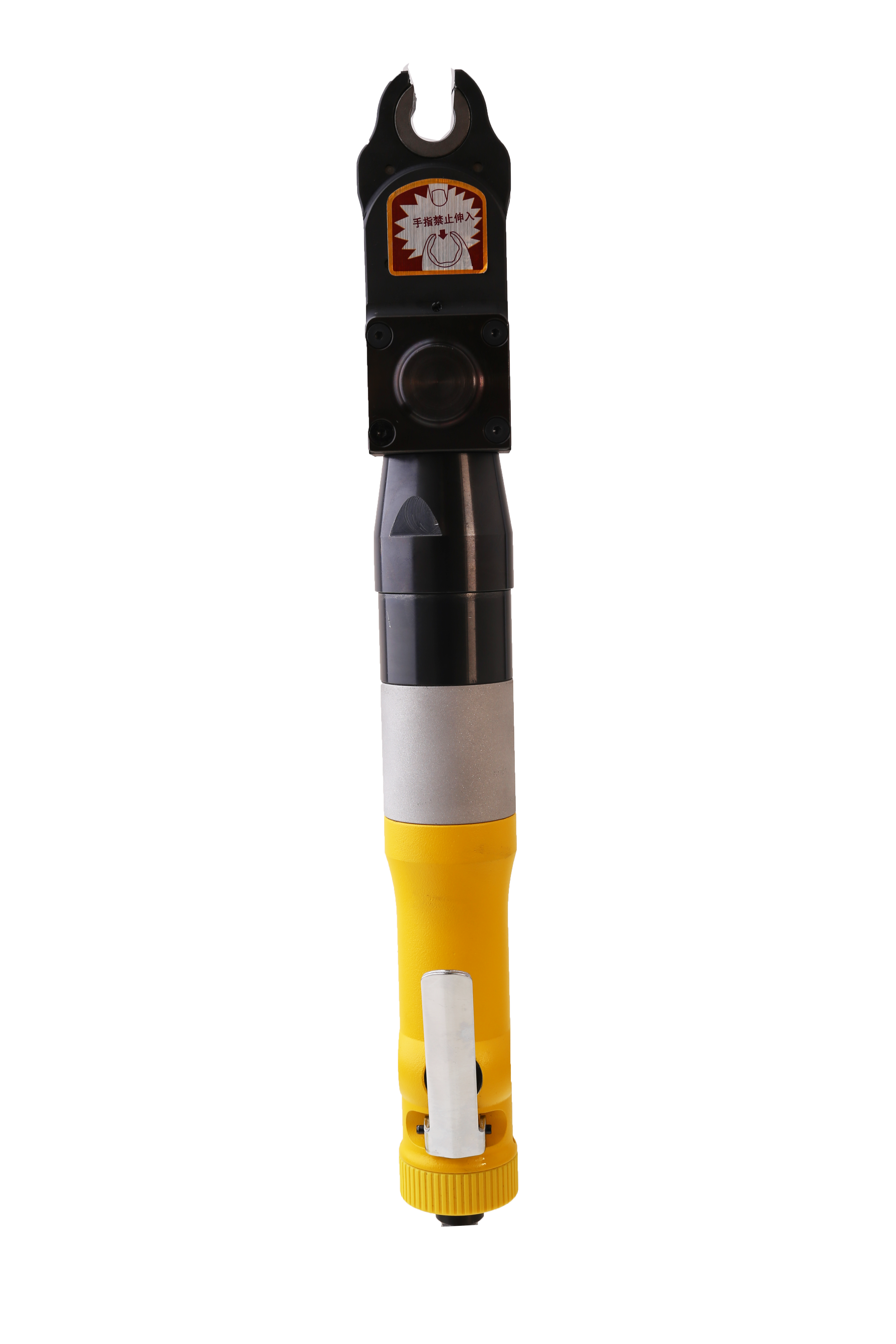

OBN-50SW-60-N OBN-50SW-60-N 16.17.18 9/16 16-24 350-400 376 2.36 PT 1/4 6.5 0.4 75

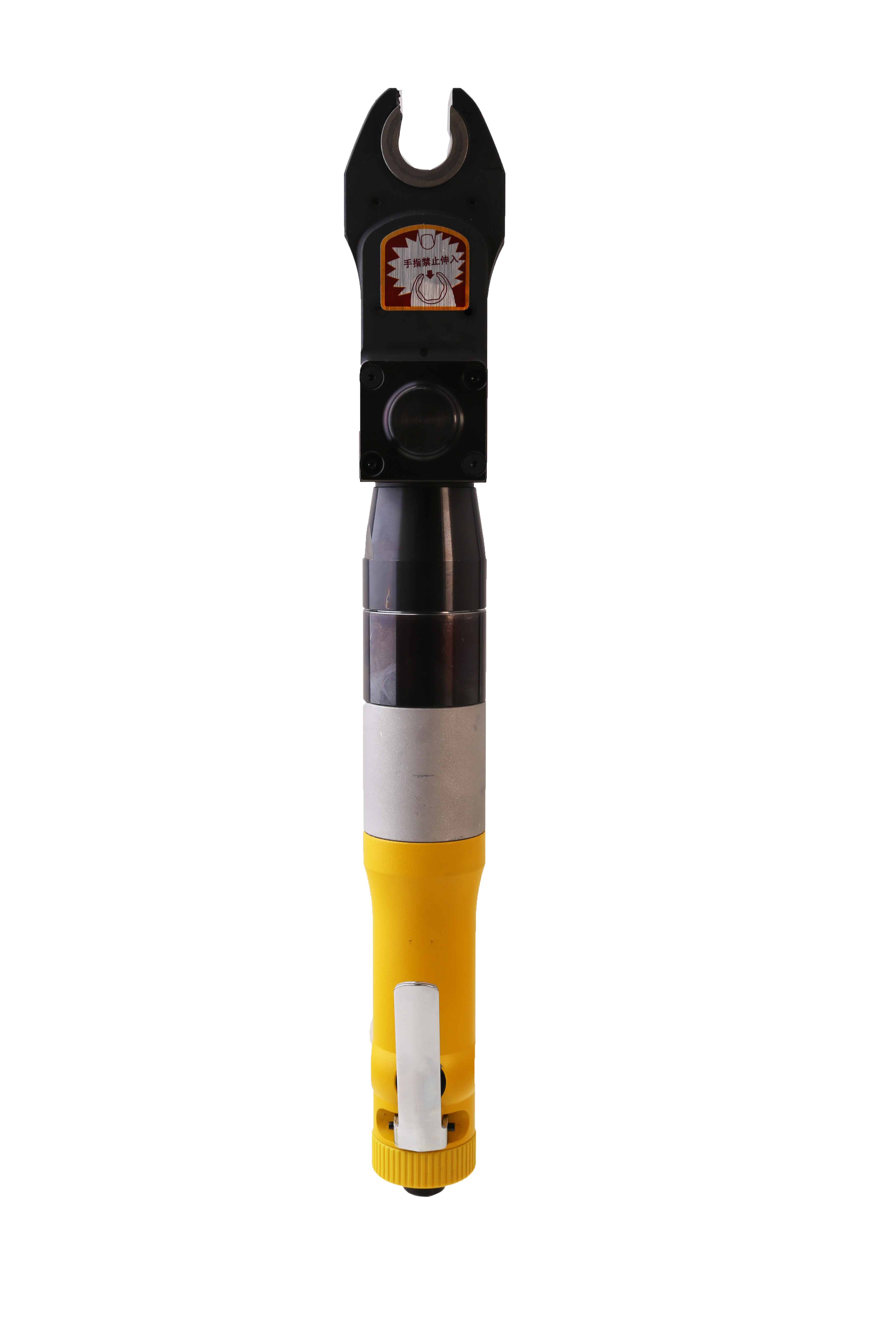

OBN-50SW-70-1 OBN-50SW-70-1 19.20.21.22.23.24 3/4"、7/8" 20-28 270-300 394 2.49 PT 1/4 6.5 0.4 75

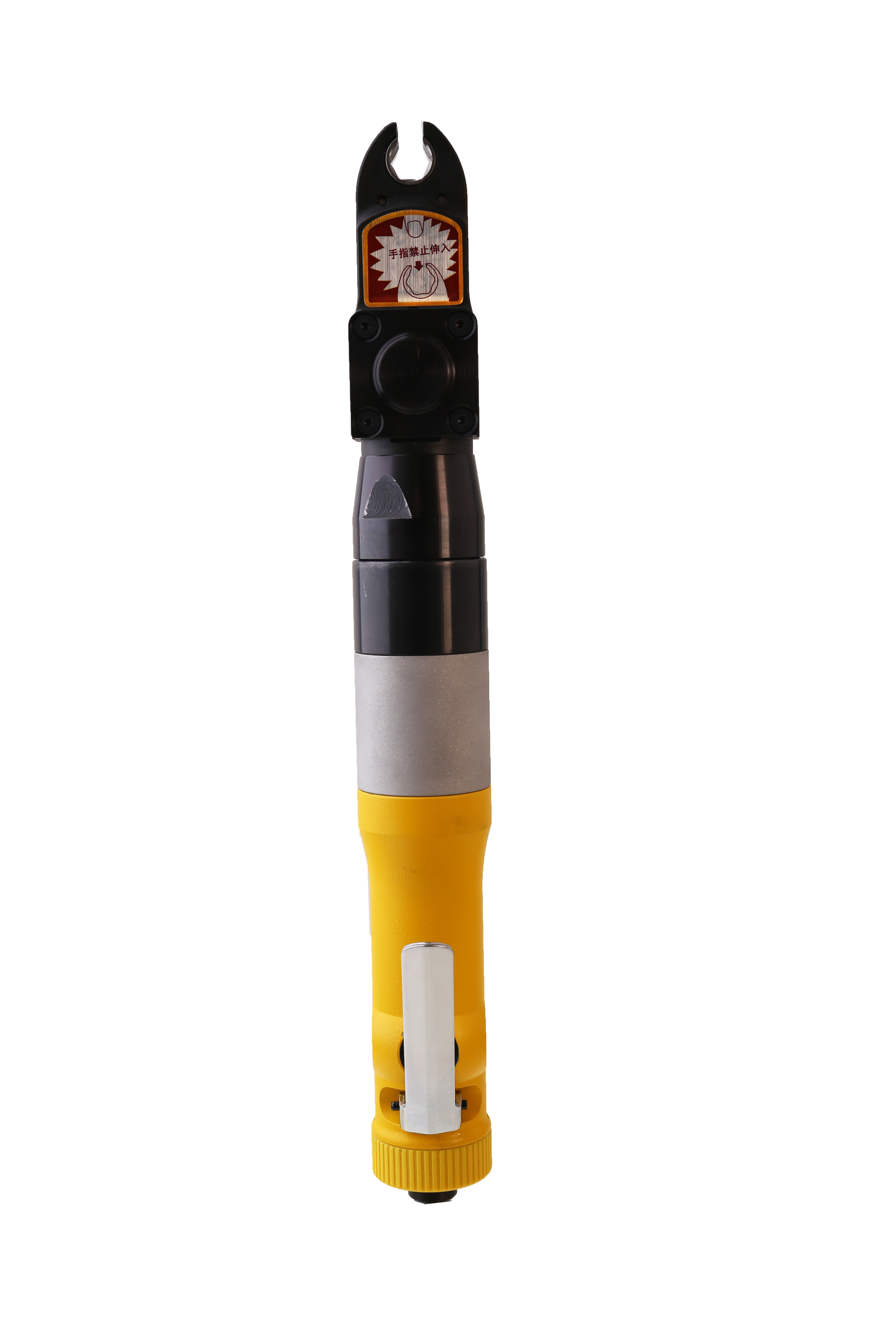

OBN-50SW-70-2 OBN-50SW-70-2 25.26.27.28.29.30 1(1/8)" 25-40 220-250 416 2.79 PT 1/4 6.5 0.4 75

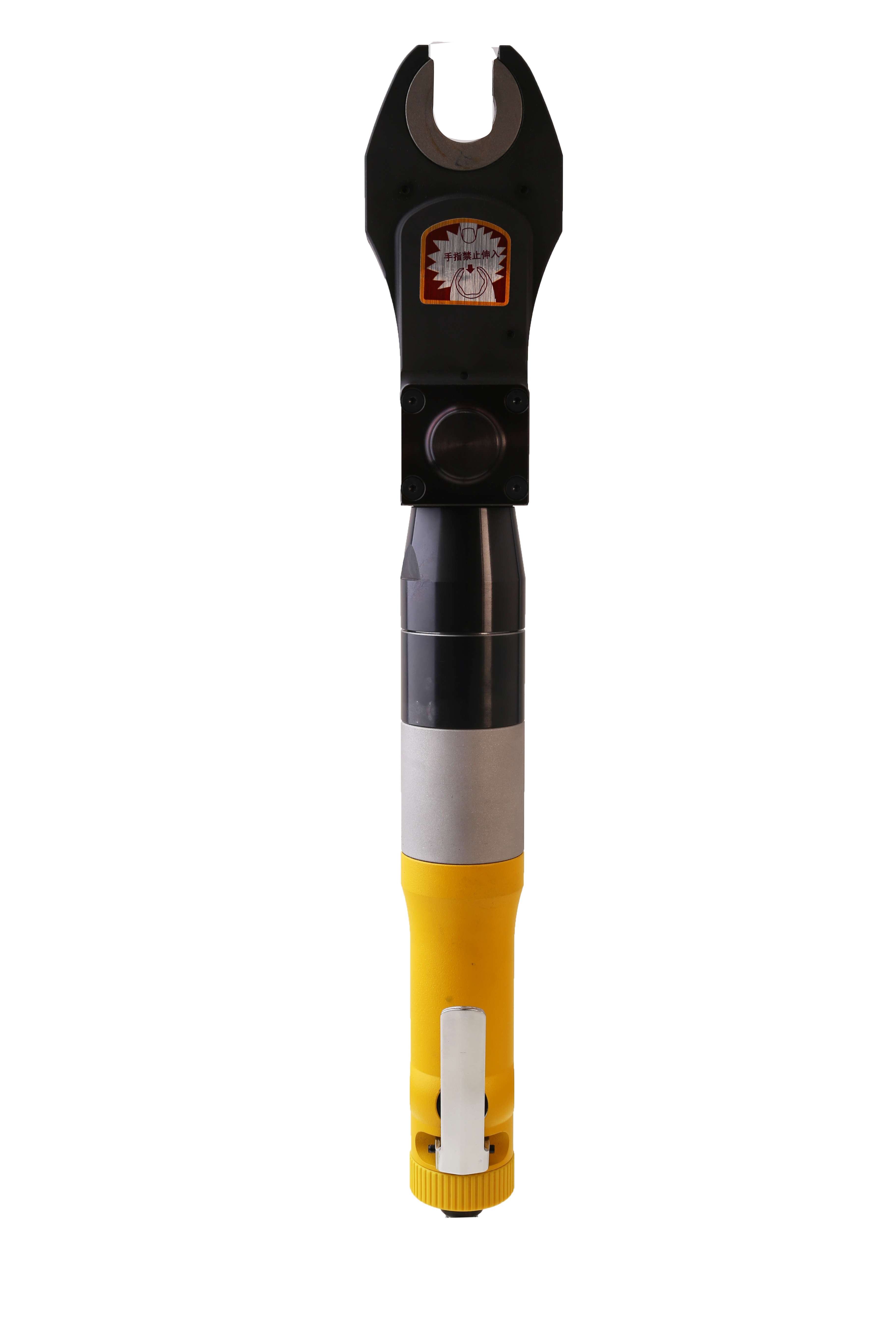

OBN-60SW-1 OBN-60SW-1 16.17.18 9/16 40-55 430-480 383 2.37 PT 1/4 6.5 0.43 76

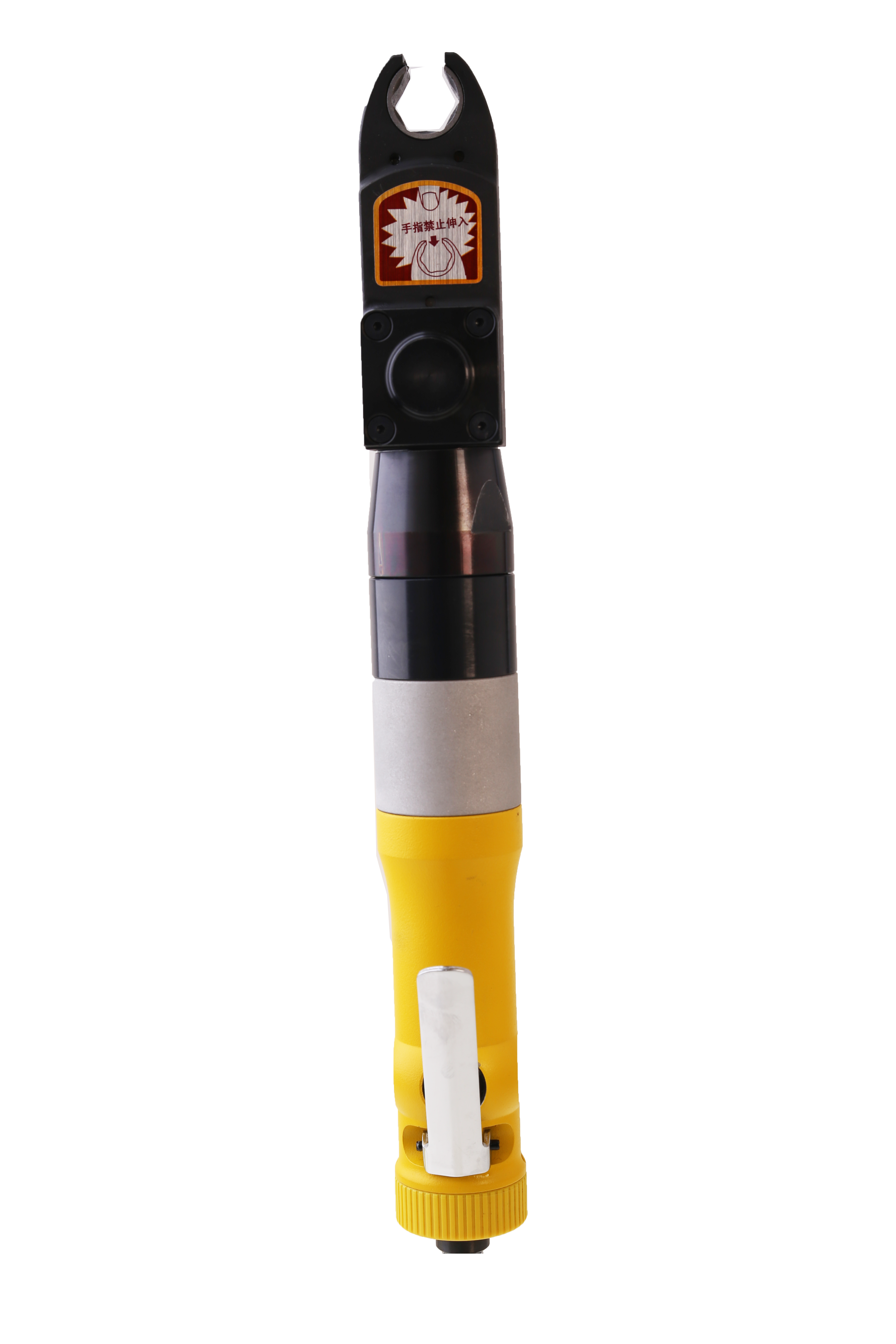

OBN-60SW-N OBN-60SW-N 16.17.18 9/16 40-55 430-480 383 2.37 PT 1/4 6.5 0.43 76
OBN-60SW-70-1 OBN-60SW-70-1 19.20.21.22.23.24 3/4"、7/8" 45-60 33.-360 402 2.53 PT 1/4 6.5 0.45 76
OBN-60SW-70-2 OBN-60SW-70-2 25.26.27.28.29.30 1(1/8)" 55-75 270-290 423 2.83 PT 1/4 6.5 0.45 76
OBN-70SW-1 OBN-70SW-1 19.20.21.22.23.24 3/4"、7/8" 60(50)-(72)78 370-400 416 2.8 PT 1/4 6.5 0.45 76
OBN-70SW-2 OBN-70SW-2 25.26.27.28.29.30 1(1/8)" 105(82)-(65)82 290-320 437 3.1 PT 1/4 6.5 0.45 76
OBN-70SW-60-1 OBN-70SW-60-1 16.17.18 9/16 45-60 470-530 397 2.64 PT 1/4 6.5 0.45 76
OBN-70SW-60-N OBN-70SW-60-N 16.17.18 9/16 45-60 470-530 397 2.64 PT 1/4 6.5 0.45 76
OBN-60SW-50-1 OBN-60SW-50-1 8.9.10 3/8.7/16 18-25 470-520 350 1.94 PT 1/4 6.5 0.43 76
OBN-60SW-50-2 OBN-60SW-50-2 12.13.14.15.16.17 9/16 32-42 380-400 372 2.0 PT 1/4 6.5 0.43 76
