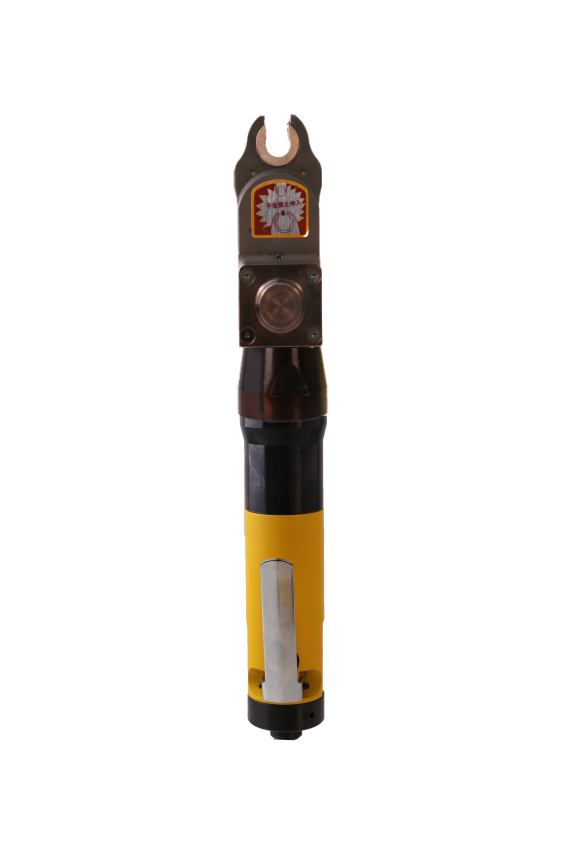

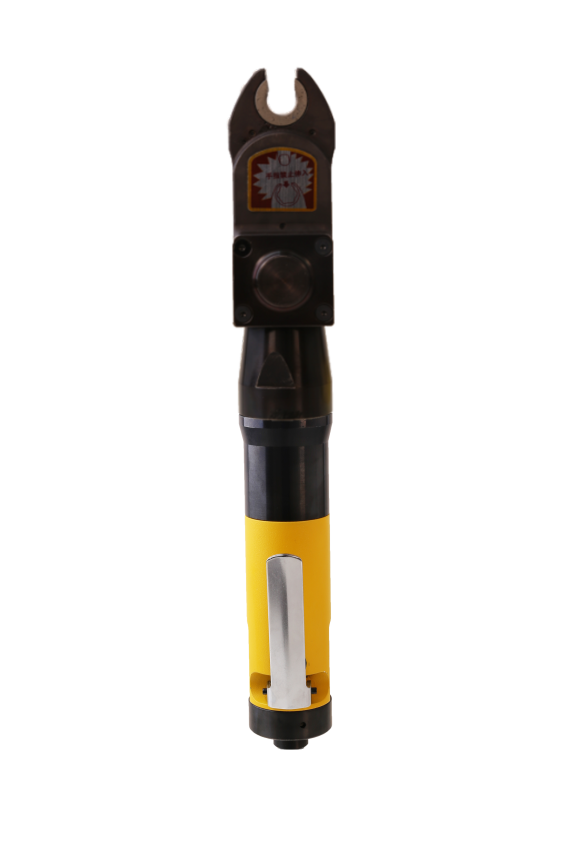

Direct drive open gear wrench

• SELECT ALL
• Clear All
• ADD TO INQUIRY

	Picture	Model No.	Opposing edge size of socket gear		Torque Range（Nm）	Free Speed（rpm）	Length	Weight	Air inlet	Rec. hose size	Air consumption	Noise level
			mm	in	0.5-0.6MPa	0.5-0.6MPa	mm	kg	in	mm	m3/min	dB

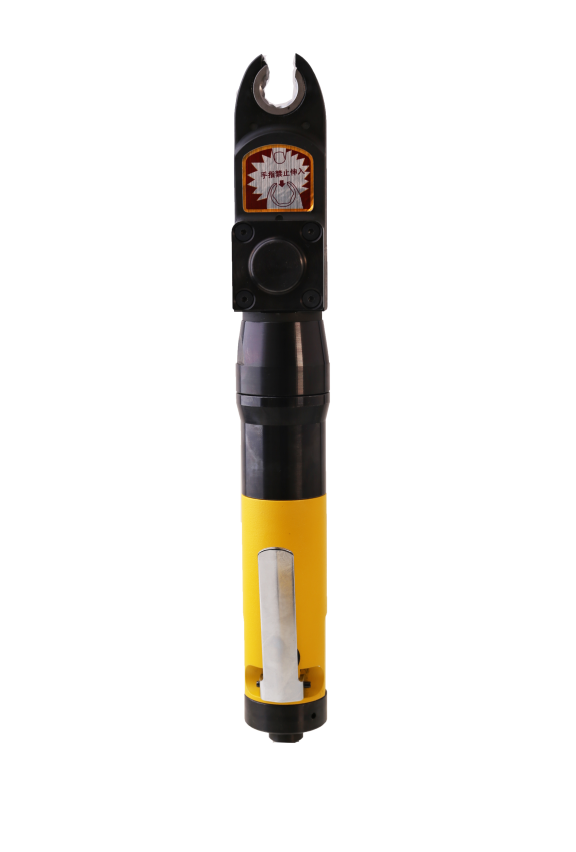

		OBN-50SW	8.9.10	3/8“、7/16”	10-18	400-430	302	1.7	PT 1/4	6.5	0.35	76

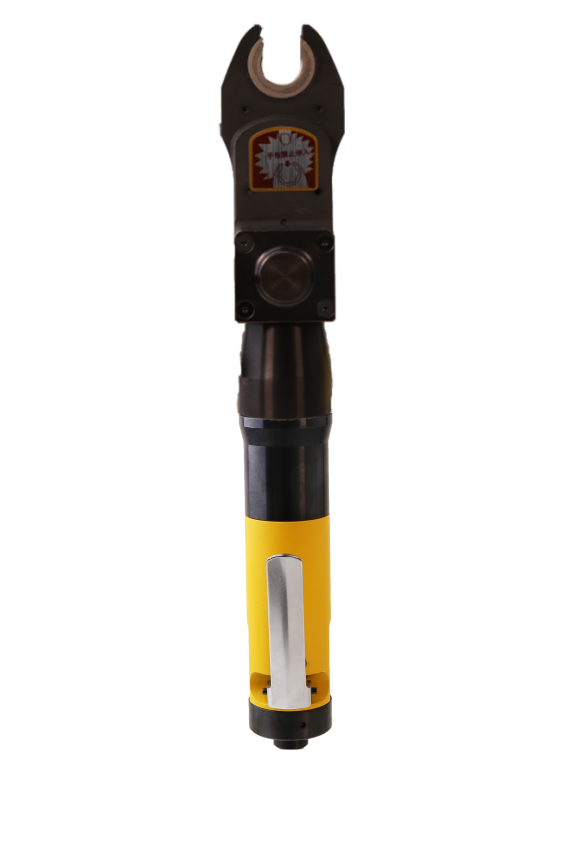

		OBN-50SW-6	12.13.14.15.16.17	9/16"	17-22	320-350	316	1.77	PT 1/4	6.5	0.35	76

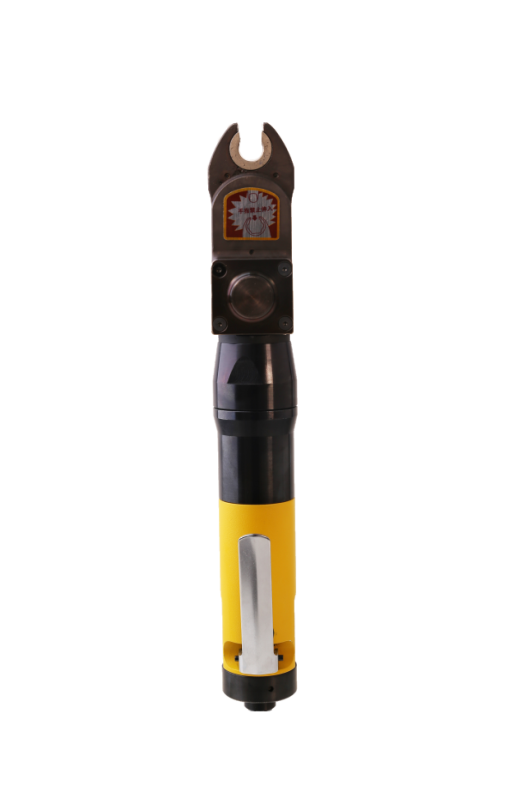

		OBN-50SW-5-1	8.9.10	3/8“、7/16”	10-18	400-430	302	1.7	PT 1/4	6.5	0.35	76

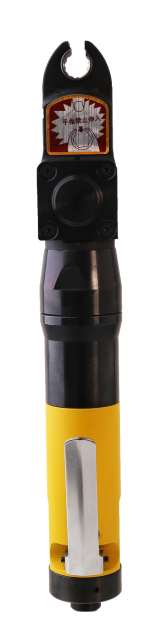

		OBN-50SW-5-2	12.13.14.15.16.17	9/16"	17-22	320-350	316	1.77	PT 1/4	6.5	0.35	76

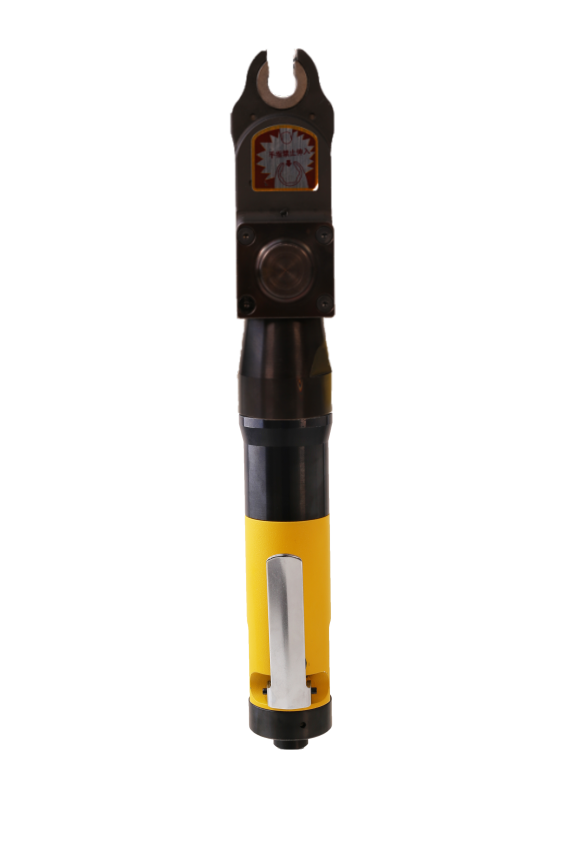

		OBN-50SW-6-1	16.17.18	9/16"	13-18	370-400	329	2.2	PT 1/4	6.5	0.35	76

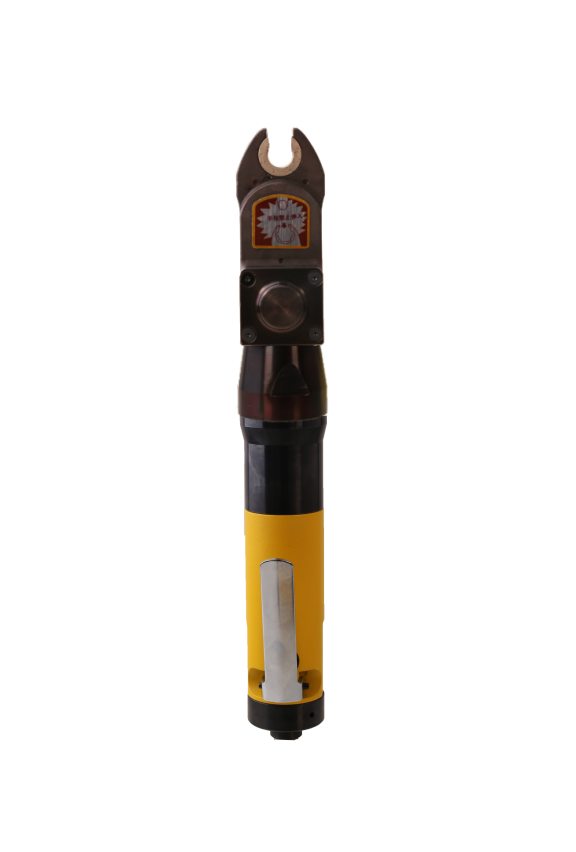

		OBN-50SW-6-N	16.17.18	9/16"	13-18	370-400	329	2.18	PT 1/4	6.5	0.35	76

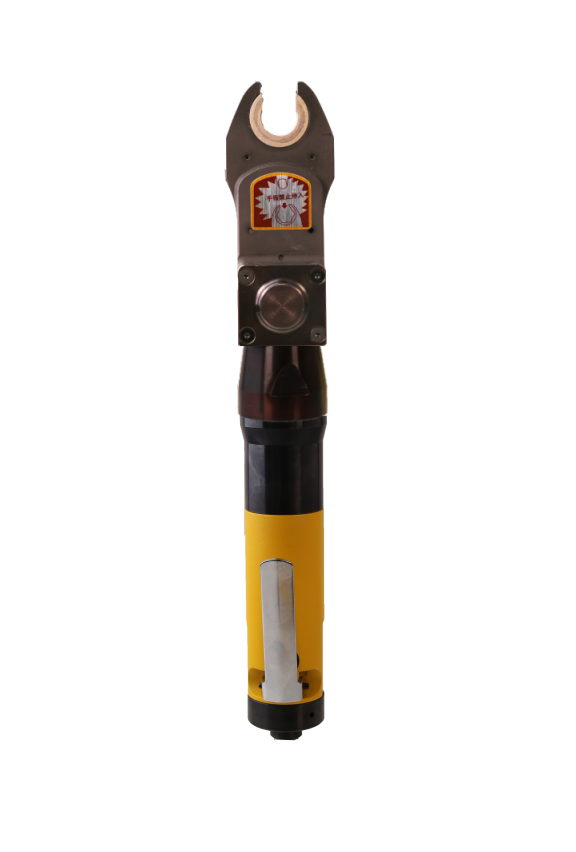

		OBN-50SW-7-1	19.20.21.22.23.24	3/4”、7/8"	16-25	280-310	347	2.32	PT 1/4	6.5	0.35	76

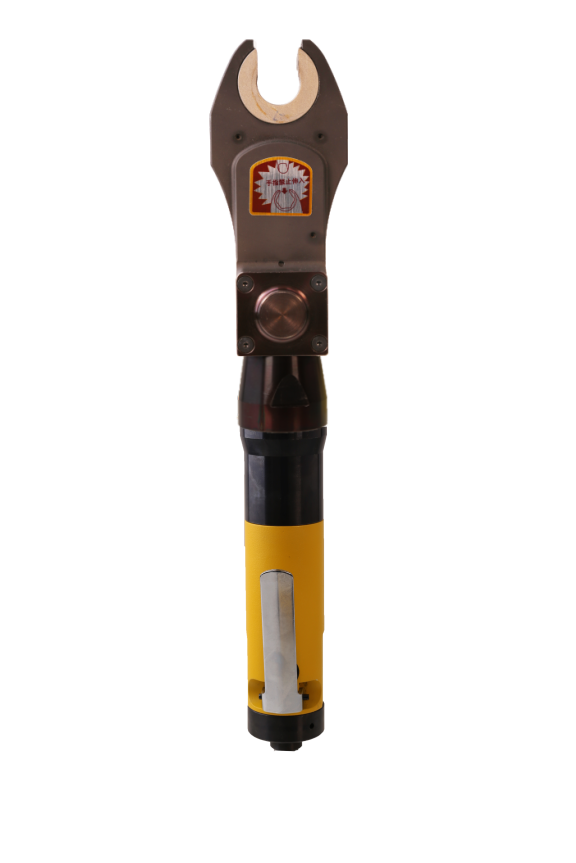

		OBN-50SW-7-2	25.26.27.28.29.30	1(1/8)"	25-30	220-240	369	2.63	PT 1/4	6.5	0.35	76
		OBN-60SW	12.13.14.15.16.17	9/16"	17-25	300-320	323	1.8	PT 1/4	6.5	0.38	76
		OBN-60SW-5	8.9.10	3/8“、7/16”	13-20	360-380	310	1.75	PT 1/4	6.5	0.38	76
		OBN-60SW-5-1	12.13.14.15.16.17	9/16"	17-25	300-320	323	1.8	PT 1/4	6.5	0.38	76
		OBN-60SW-5-2	8.9.10	3/8“、7/16”	13-20	360-380	310	1.75	PT 1/4	6.5	0.38	76
		OBN-60SW-6-1	16.17.18	9/16"	14-20	340-360	335	2.24	PT 1/4	6.5	0.38	76
		OBN-60SW-6-N	16.17.18	9/16"	14-20	340-360	335	2.22	PT 1/4	6.5	0.38	76
		OBN-60SW-7-1	19.20.21.22.23.24	3/4”、7/8"	18-25	260-280	354	2.37	PT 1/4	6.5	0.38	76
		OBN-60SW-7-2	25.26.27.28.29.30	1(1/8)"	25-35	200-210	375	2.67	PT 1/4	6.5	0.38	76
