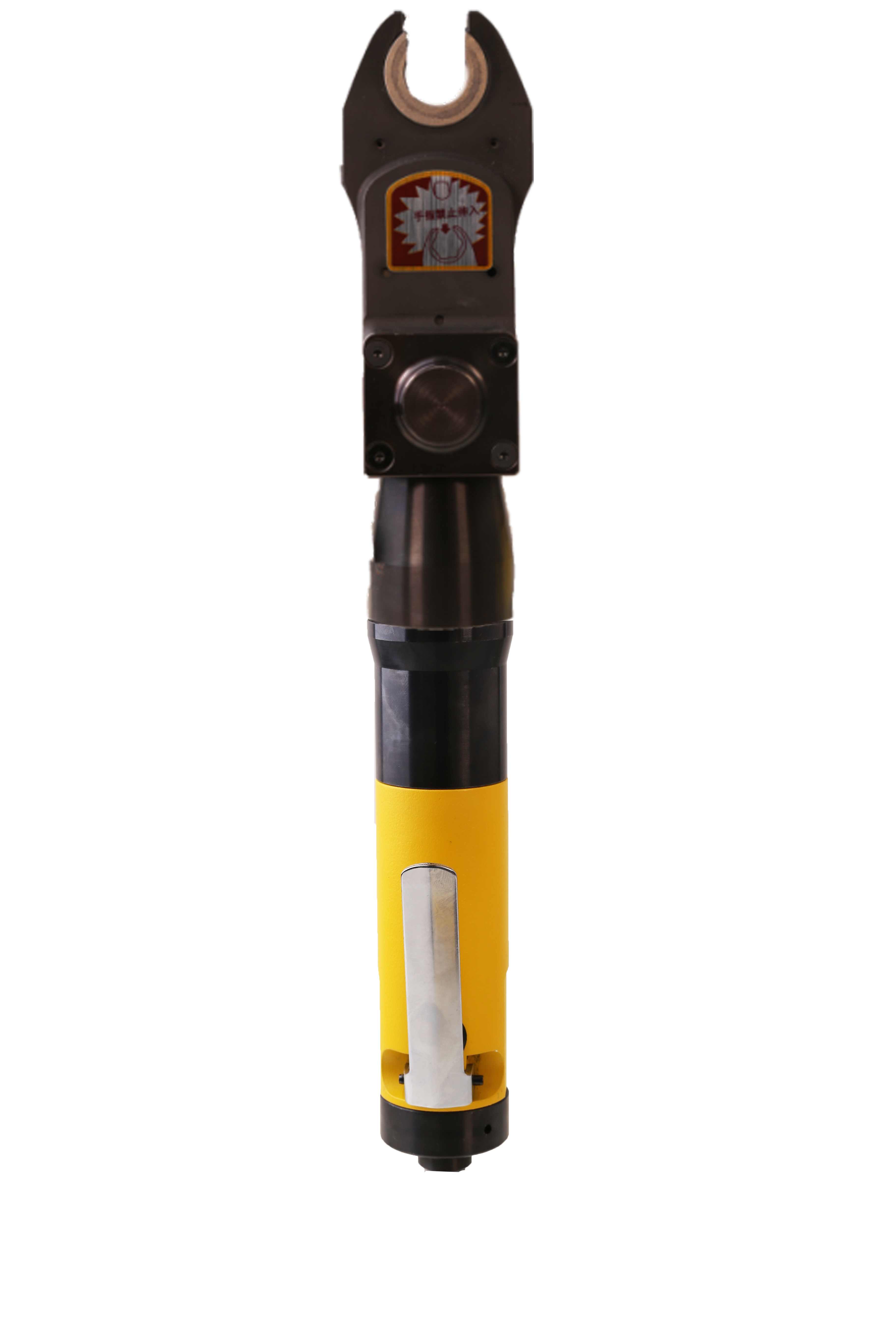

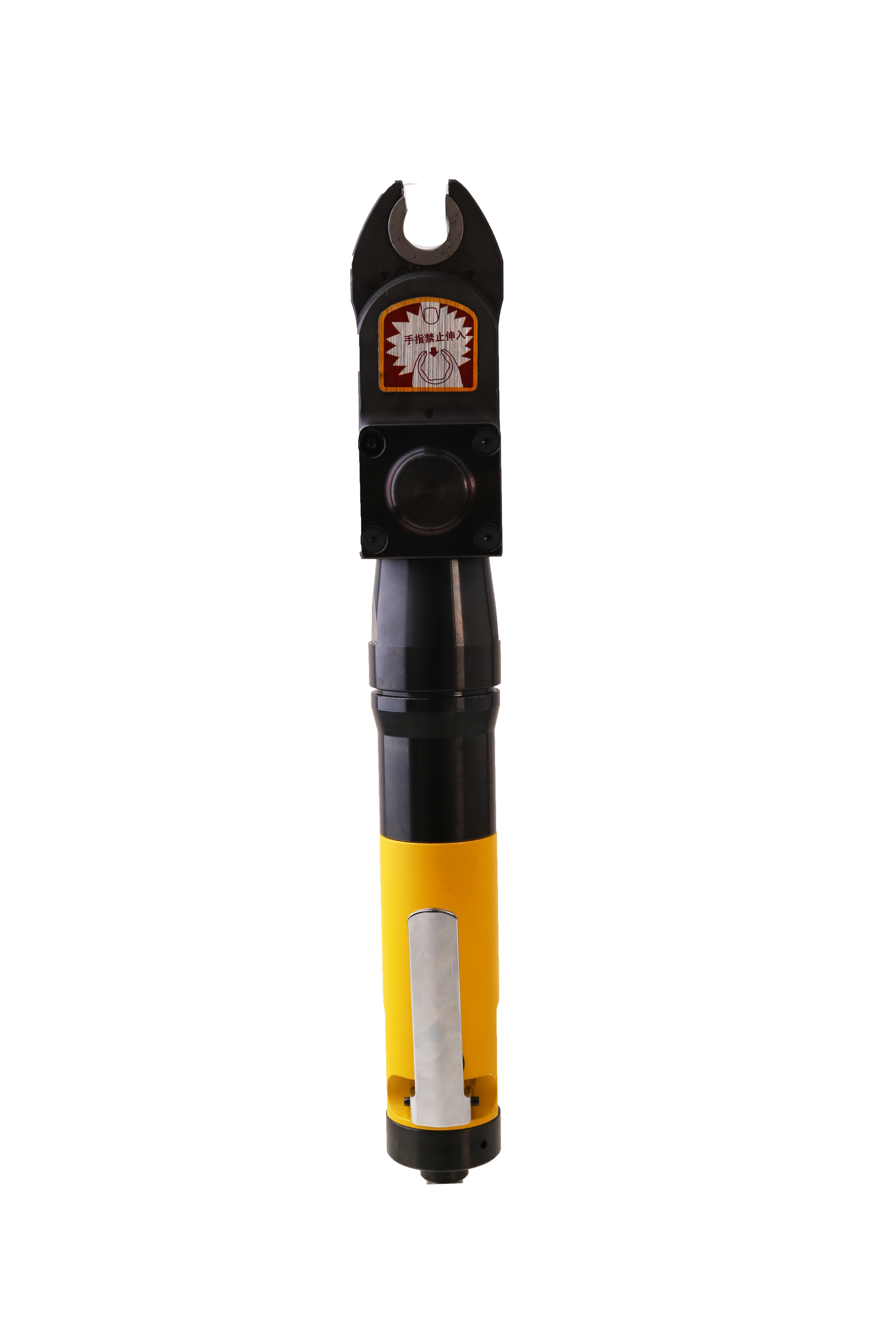

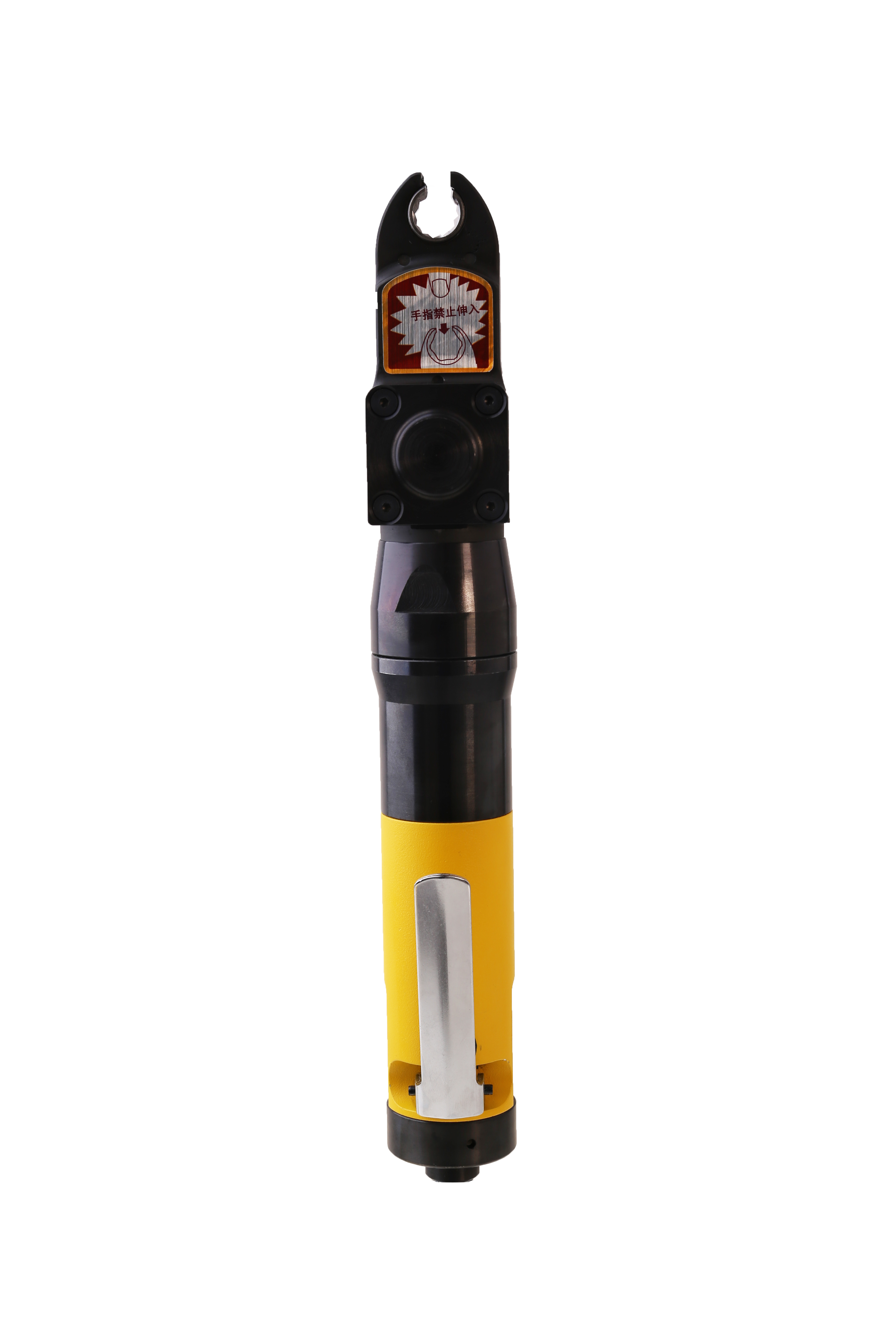

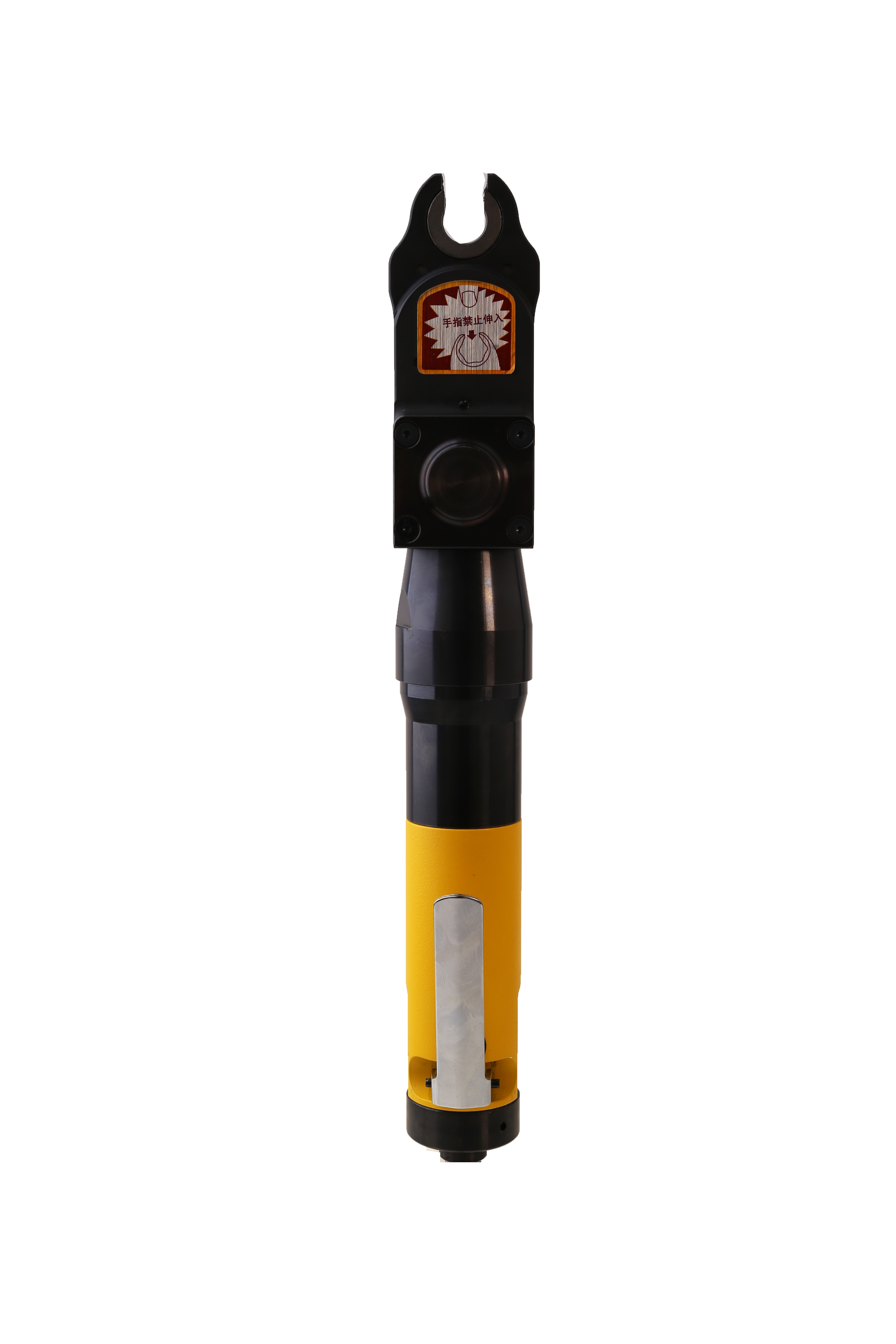

直驱开口齿轮扳手
| 图片 | 型号 | 套筒齿轮对边尺寸 | 扭矩范围（Nm） | 空转速度（rpm） | 全长 | 重量 | 进气口尺寸 | 推荐气管的内径 | 耗气量 | 噪音值 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | 0.5-0.6MPa | 0.5-0.6MPa | mm | kg | in | mm | m3/min | dB | |||
 |
OBN-50SW | 8.9.10 | 3/8“、7/16” | 10-18 | 400-430 | 302 | 1.7 | PT 1/4 | 6.5 | 0.35 | 76 | |
 |
OBN-50SW-6 | 12.13.14.15.16.17 | 9/16" | 17-22 | 320-350 | 316 | 1.77 | PT 1/4 | 6.5 | 0.35 | 76 | |
 |
OBN-50SW-5-1 | 8.9.10 | 3/8“、7/16” | 10-18 | 400-430 | 302 | 1.7 | PT 1/4 | 6.5 | 0.35 | 76 | |
 |
OBN-50SW-5-2 | 12.13.14.15.16.17 | 9/16" | 17-22 | 320-350 | 316 | 1.77 | PT 1/4 | 6.5 | 0.35 | 76 | |
 |
OBN-50SW-6-1 | 16.17.18 | 9/16" | 13-18 | 370-400 | 329 | 2.2 | PT 1/4 | 6.5 | 0.35 | 76 | |
 |
OBN-50SW-6-N | 16.17.18 | 9/16" | 13-18 | 370-400 | 329 | 2.18 | PT 1/4 | 6.5 | 0.35 | 76 | |
 |
OBN-50SW-7-1 | 19.20.21.22.23.24 | 3/4”、7/8" | 16-25 | 280-310 | 347 | 2.32 | PT 1/4 | 6.5 | 0.35 | 76 | |
 |
OBN-50SW-7-2 | 25.26.27.28.29.30 | 1(1/8)" | 25-30 | 220-240 | 369 | 2.63 | PT 1/4 | 6.5 | 0.35 | 76 | |
 |
OBN-60SW | 12.13.14.15.16.17 | 9/16" | 17-25 | 300-320 | 323 | 1.8 | PT 1/4 | 6.5 | 0.38 | 76 | |
 |
OBN-60SW-5 | 8.9.10 | 3/8“、7/16” | 13-20 | 360-380 | 310 | 1.75 | PT 1/4 | 6.5 | 0.38 | 76 | |
 |
OBN-60SW-5-1 | 12.13.14.15.16.17 | 9/16" | 17-25 | 300-320 | 323 | 1.8 | PT 1/4 | 6.5 | 0.38 | 76 | |
 |
OBN-60SW-5-2 | 8.9.10 | 3/8“、7/16” | 13-20 | 360-380 | 310 | 1.75 | PT 1/4 | 6.5 | 0.38 | 76 | |
 |
OBN-60SW-6-1 | 16.17.18 | 9/16" | 14-20 | 340-360 | 335 | 2.24 | PT 1/4 | 6.5 | 0.38 | 76 | |
 |
OBN-60SW-6-N | 16.17.18 | 9/16" | 14-20 | 340-360 | 335 | 2.22 | PT 1/4 | 6.5 | 0.38 | 76 | |
 |
OBN-60SW-7-1 | 19.20.21.22.23.24 | 3/4”、7/8" | 18-25 | 260-280 | 354 | 2.37 | PT 1/4 | 6.5 | 0.38 | 76 | |
 |
OBN-60SW-7-2 | 25.26.27.28.29.30 | 1(1/8)" | 25-35 | 200-210 | 375 | 2.67 | PT 1/4 | 6.5 | 0.38 | 76 | |
