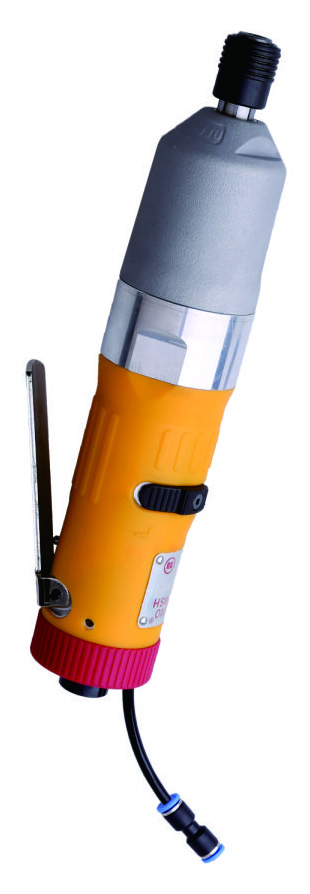

OBT直型断气式（高压）
| 图片 | 型号 | 螺栓直径 | 扭矩范围（Nm） | 套筒或起子 | 空转速度（rpm） | 全长 | 重量 | 进气口尺寸 | 推荐气管的内径 | 耗气量 | 噪音值 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | 0.5-0.6MPa | in | 0.4MPa | 0.5MPa | 0.6MPa | mm | kg | in | mm | m3/min | dB | |||
 |
OBT-40SD-RE | 5 | 5-10 | 3/8 | 4200 | 4500 | 4800 | 218 | 0.83 | PT 1/4 | 6.5 | 0.2 | 70 | |
| OBT-50SD-RE | 5-6 | 7-16 | 3/8 | - | - | 5000 | 218 | 0.83 | PT 1/4 | 6.5 | 0.25 | 78 | ||
| OBT-60SD-RE | 8 | 20-32 | 3/8 | - | - | 6000 | 228 | 0.87 | PT 1/4 | 6.5 | 0.3 | 80 | ||
| OBT-70SD-RE | 8-10 | 30-50 | 3/8 | - | - | 6000 | 240.5 | 0.95 | PT 1/4 | 8.0 | 0.35 | 80 | ||
| OBT-80SD-RE | 8-10 | 50-70 | 3/8 | - | - | 6200 | 246.5 | 1.2 | PT 1/4 | 8.0 | 0.48 | 80 | ||
| OBT-81SD-RE | 10 | 48-65 | 1/2 | - | - | 6000 | 251.5 | 1.25 | PT 1/4 | 8.0 | 0.48 | 80 | ||
| OBT-40SH-RE | 5 | 5-10 | 1/4 | 4200 | 4500 | 4800 | 220.5 | 0.83 | PT 1/4 | 6.5 | 0.2 | 70 | ||
| OBT-50SH-RE | 5-6 | 7-16 | 1/4 | - | - | 5000 | 220.5 | 0.83 | PT 1/4 | 6.5 | 0.25 | 78 | ||
| OBT-60SH-RE | 6-8 | 16-28 | 1/4 | - | - | 6000 | 230.5 | 0.87 | PT 1/4 | 6.5 | 0.3 | 80 | ||
| OBT-70SH-RE | 8 | 20-32 | 1/4 | - | - | 6000 | 240.5 | 0.95 | PT 1/4 | 8.0 | 0.4 | 80 | ||
