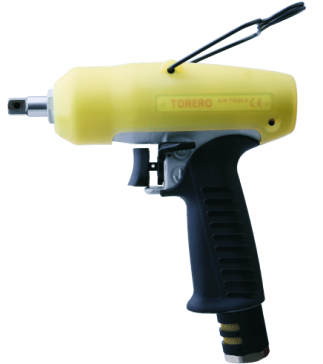

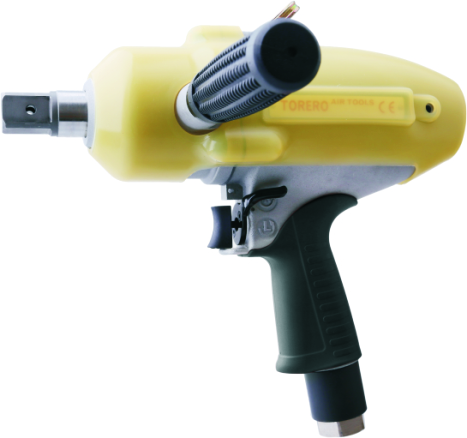

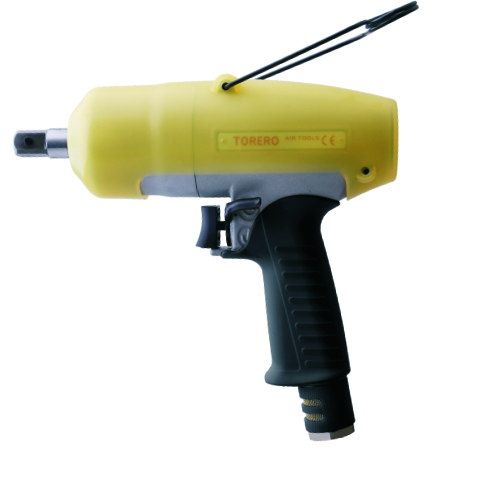

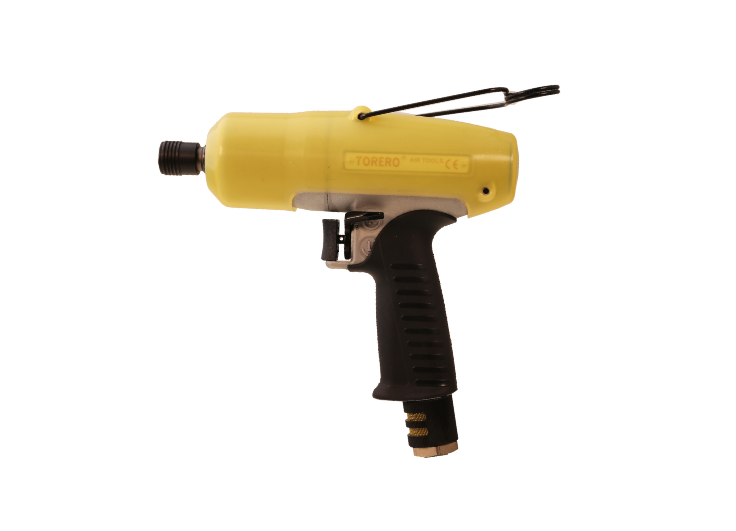

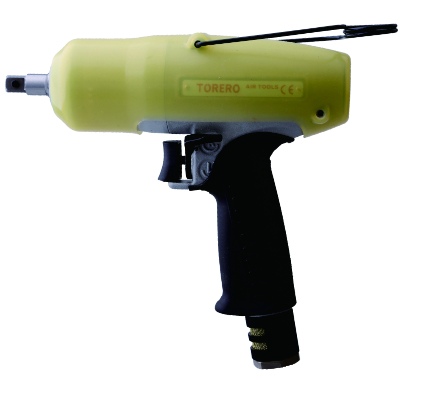

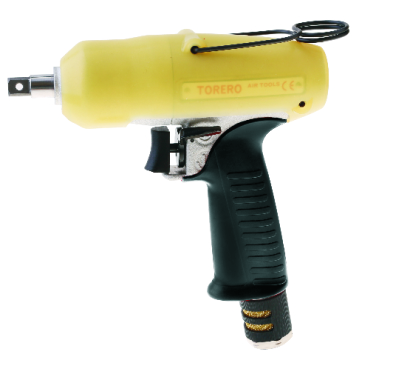

OBT枪型断气式（低压）
| 图片 | 型号 | 螺栓直径 | 扭矩范围（Nm） | 套筒或起子 | 空转速度（rpm） | 全长 | 重量 | 进气口尺寸 | 推荐气管的内径 | 耗气量 | 噪音值 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | 0.4-0.5MPa | in | 0.4MPa | 0.5MPa | 0.6MPa | mm | kg | in | mm | m3/min | dB | |||
 |
OBT-50PDL | 5-6 | 7-16 | 3/8 | 3900 | 4200 | - | 160.5 | 0.92 | PT 1/4 | 6.5 | 0.2 | 75 | |
 |
OBT-60PDL | 8 | 14-32 | 3/8 | 5400 | 5700 | - | 170 | 0.95 | PT 1/4 | 6.5 | 0.25 | 77 | |
 |
OBT-70PDL | 8-10 | 25-45 | 3/8 | 5400 | 5700 | - | 183 | 1.05 | PT 1/4 | 8.0 | 0.3 | 78 | |
 |
OBT-80PDL | 8-10 | 35-55 | 3/8 | 5300 | 5600 | - | 187 | 1.25 | PT 1/4 | 8.0 | 0.4 | 78 | |
 |
OBT-81PDL | 10 | 35-58 | 1/2 | 5300 | 5600 | - | 192 | 1.25 | PT 1/4 | 8.0 | 0.4 | 78 | |
 |
OBT-90PDL | 10 | 40-80 | 1/2 | 4400 | 4700 | - | 192 | 1.45 | PT 1/4 | 8.0 | 0.45 | 79 | |
 |
OBT-100PDL | 10-12 | 65-105 | 1/2 | 3900 | 4200 | - | 198 | 1.7 | PT 1/4 | 8.0 | 0.48 | 79 | |
 |
OBT-130PDL | 12 | 85-120 | 1/2 | 3900 | 4200 | - | 215 | 2.3 | PT 1/4 | 12.7 | 0.5 | 79 | |
 |
OBT-150PDL | 12-14 | 105-165 | 3/4 | 3600 | 3800 | - | 243.5 | 2.9 | PT 1/4 | 12.7 | 0.5 | 79 | |
 |
OBT-180PDL | 14-16 | 125-205 | 3/4 | 2600 | 2800 | - | 262 | 3.7 | PT 3/8 | 12.7 | 0.5 | 80 | |
 |
OBT-50PHL | 5-6 | 7-16 | 1/4 | 3900 | 4200 | - | 161 | 0.92 | PT 1/4 | 6.5 | 0.2 | 75 | |
 |
OBT-60PHL | 6-8 | 10-24 | 1/4 | 5400 | 5700 | - | 171 | 0.95 | PT 1/4 | 6.5 | 0.25 | 77 | |
 |
OBT-70PHL | 8 | 14-30 | 1/4 | 5300 | 5600 | - | 183 | 1.05 | PT 1/4 | 8.0 | 0.4 | 77 | |
 |
OBT-80PHL | 8-10 | 25-40 | 1/4 | 5300 | 5600 | 191 | 1.26 | PT 1/4 | 8.0 | 0.48 | 80 | ||
