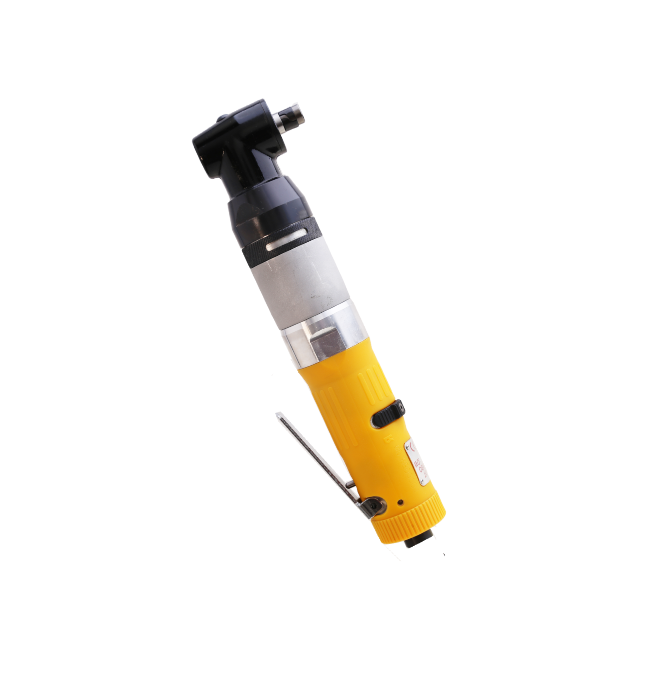

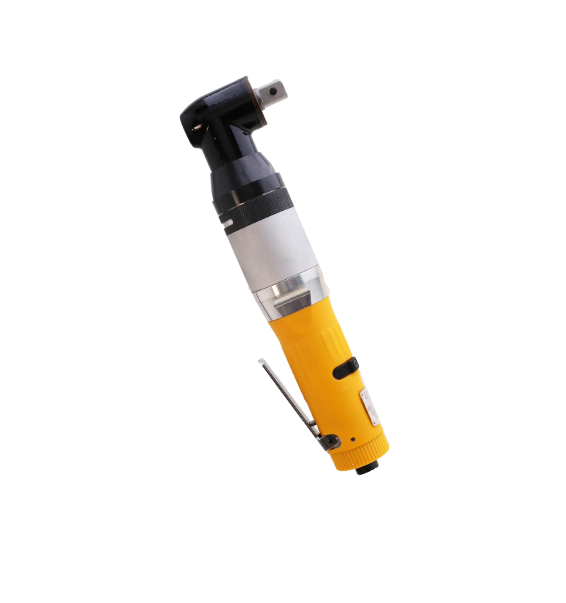

OBN弯头失速式扳手
| 图片 | 型号 | 螺栓直径 | 扭矩范围（Nm） | 套筒或起子 | 空转速度（rpm） | 全长 | 重量 | 进气口尺寸 | 推荐气管的内径 | 耗气量 | 噪音值 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | 0.5-0.6MPa | in | 0.4MPa | 0.5MPa | 0.6MPa | mm | kg | in | mm | m3/min | dB | |||
 |

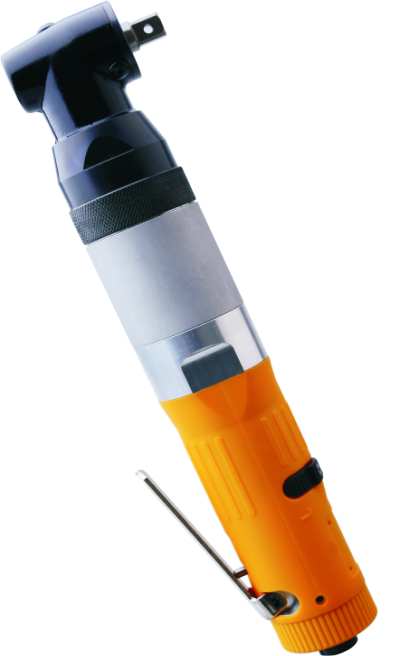

OBN-50SC | 6-8 | 15-20 | 3/8 | - | 4600 | 4800 | 261.5 | 1.35 | PT 1/4 | 6.5 | 0.4 | 75 | |
 |

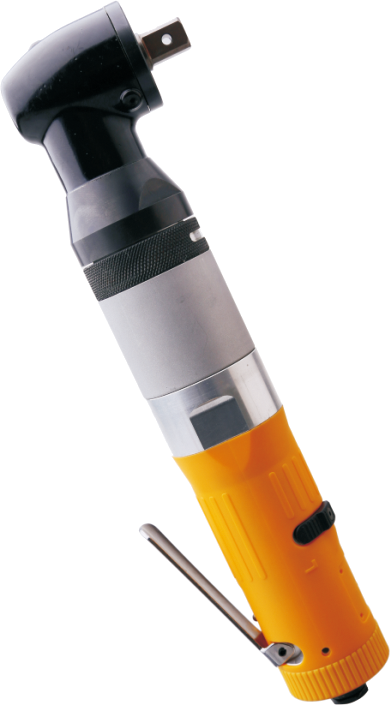

OBN-60SC | 8 | 18-30 | 3/8 | - | 5700 | 6000 | 269.5 | 1.45 | PT 1/4 | 6.5 | 0.43 | 75 | |
 |

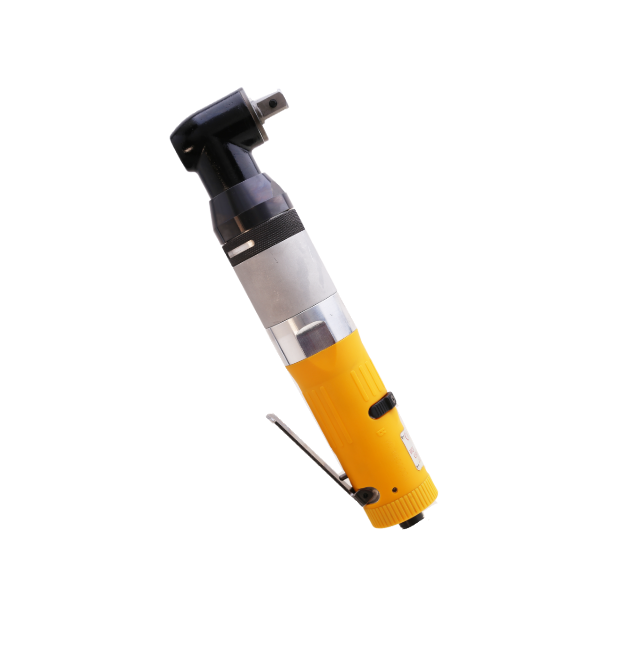

OBN-70SC | 8-10 | 40-55 | 3/8 | - | 3900 | 4000 | 285 | 1.6 | PT 1/4 | 8.0 | 0.45 | 78 | |
 |

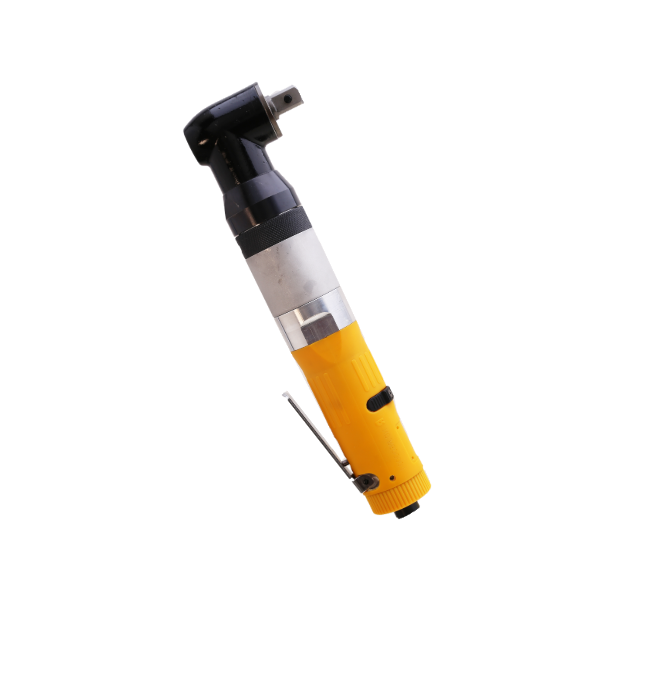

OBN-80SC | 10-12 | 60-85 | 1/2 | - | - | 3200 | 305.5 | 1.85 | PT 1/4 | 8.0 | 0.5 | 80 | |
 |

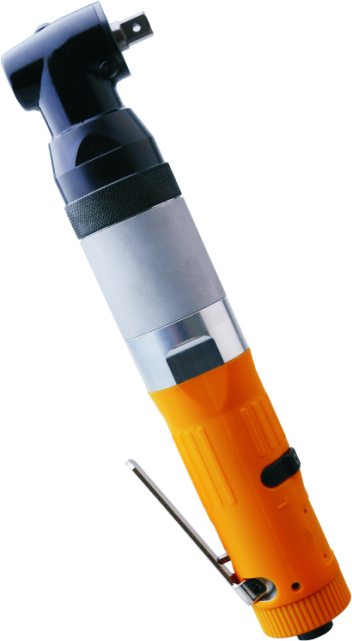

OBN-70SC-1 | 8-10 | 40-58 | 1/2 | 3800 | 3900 | 285 | 1.62 | PT 1/4 | 8.0 | 0.45 | 78 | ||
 |

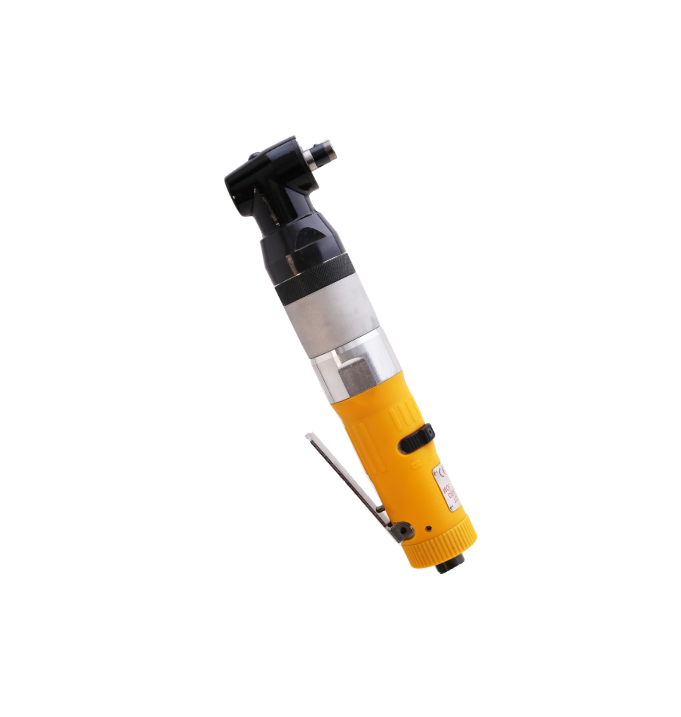

OBN-75SC | 10 | 45-62 | 1/2 | 3700 | 4000 | 290 | 1.82 | PT 1/4 | 8.0 | 0.45 | 78 | ||
 |

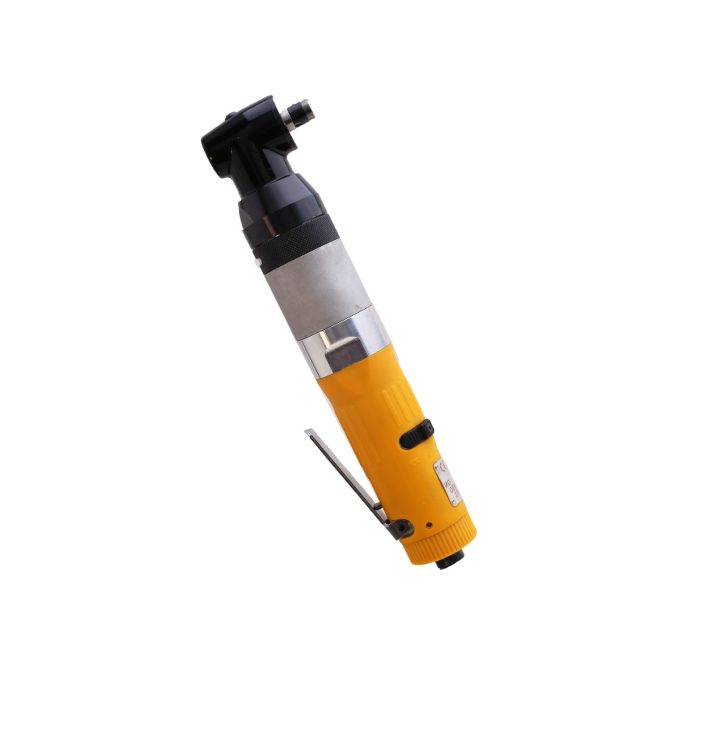

OBN-80SC-1 | 10 | 45-80 | 1/2 | 4200 | 4500 | 294 | 1.97 | PT 1/4 | 8.0 | 0.5 | 80 | ||
 |

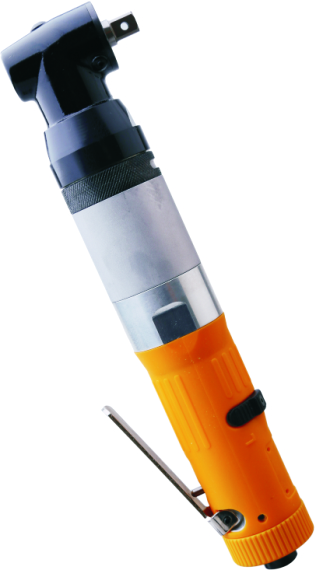

OBN-50SCH | 6 | 10-18 | 1/4 | 4600 | 4800 | 256 | 1.22 | PT 1/4 | 6.5 | 0.4 | 75 | ||
 |
OBN-60SCH | 6-8 | 17-24 | 1/4 | 5500 | 5900 | 264 | 1.26 | PT 1/4 | 6.5 | 0.43 | 75 | ||
 |
OBN-70SCH | 8 | 18-29 | 1/4 | 5500 | 5300 | 277 | 1.4 | PT 1/4 | 8.0 | 0.45 | 75 | ||
