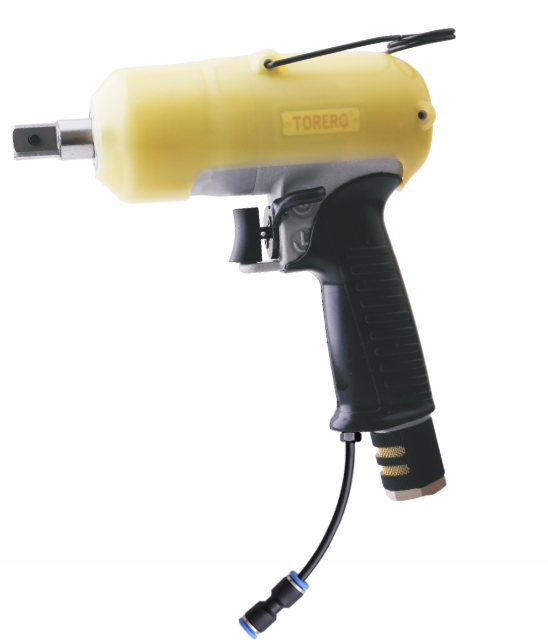

OBN枪型失速式工具

图片 型号螺栓直径 扭矩范围(Nm) 套筒或起子 空转速度(rpm) 全长 重量 进气口尺寸 推荐气管的内径 耗气量 噪音值
mm 0.5-0.6MPa in 0.4MPa 0.5MPa 0.6MPa mm kg in mm m3/min dB
OBN-30PD-RE OBN-30PD-RE 5-6 6-12 3/8 - - 3800 131 0.7 PT 1/4 6.5 0.2 75
OBN-40PD-RE 6 13-25 3/8 - - 3800 131 0.7 PT 1/4 6.5 0.2 75
OBN-50PD-RE 6-8 22-38 3/8 - - 6200 134 0.77 PT 1/4 6.5 0.25 78
OBN-60PD-RE 8-10 35-50 3/8 - - 6500 141 0.82 PT 1/4 6.5 0.4 80
OBN-70PD-RE 10 40-60 3/8 - - 6700 155 0.95 PT 1/4 8.0 0.45 80
OBN-80PD-RE 10 55-85 3/8 - - 6200 161.5 1.15 PT 1/4 8.0 0.48 80
OBN-81PD-RE 10-12 60-90 1/2 - - 6200 166.5 1.17 PT 1/4 8.0 0.48 80
OBN-90PD-RE 12 90-105 1/2 - - 5800 165 1.3 PT 1/4 8.0 0.53 82
OBN-100PD-RE 12-14 100-135 1/2 - - 5200 172 1.66 PT 1/4 8.0 0.58 80
OBN-130PD-RE 14 125-165 1/2 - - 4300 185 2.3 PT 1/4 12.7 0.65 83
OBN-150PD-RE 14-16 150-230 3/4 - - 3800 213.5 2.5 PT 1/4 12.7 0.7 82
OBN-180PD-RE 16-18 220-275 3/4 3200 226.5 3.0 PT 3/8 12.7 0.7 82
OBN-30PH-RE 5-6 6-12 1/4 - - 3800 131 0.7 PT 1/4 6.5 0.2 75
OBN-40PH-RE 6 10-20 1/4 - - 3800 131 0.7 PT 1/4 6.5 0.2 75
OBN-50PH-RE 6-8 18-30 1/4 - - 6200 134 0.77 PT 1/4 6.5 0.25 78
OBN-60PH-RE 8 25-35 1/4 - - 6500 142 0.82 PT 1/4 6.5 0.4 80
OBN-70PH-RE 8-10 35-45 1/4 - - 6700 155 0.95 PT 1/4 8.0 0.45 80
